smooth moving head head series for DJ moving show
1. The design of Marslite moving head mini varies with the market trend. Guangzhou Mars Lighting Technology Co., Ltd. Is a professional stage lighting factor
2. This product saves a lot more money for people. It helps people become friendly with the environment by conserving energy. Our products have CE and ROHS certificates
3. After rigorous testing and testing, the product is qualified for high performance and quality. Featured with long service life and small capacity loss
Product Video
Product Overviews

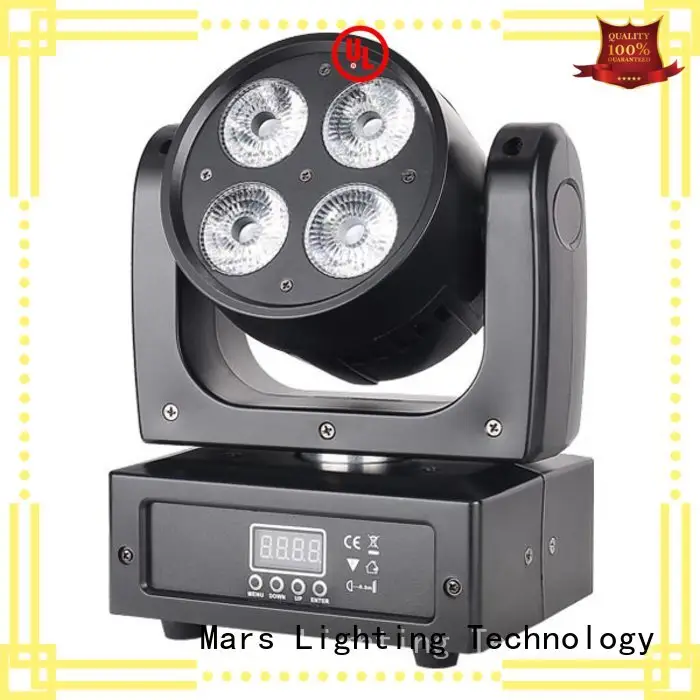

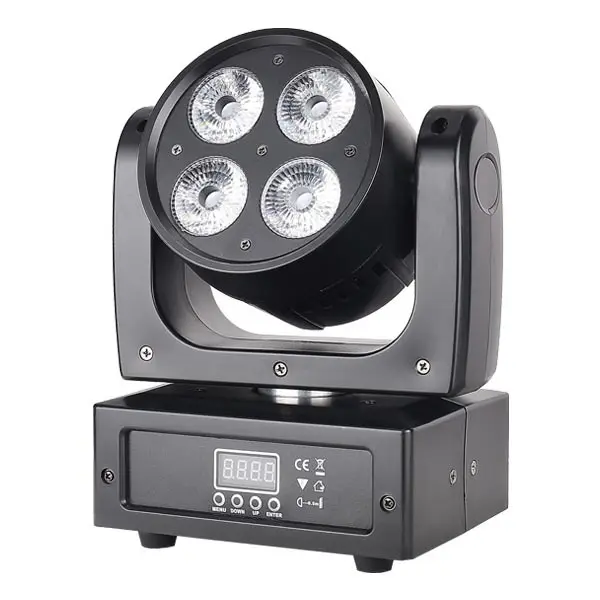

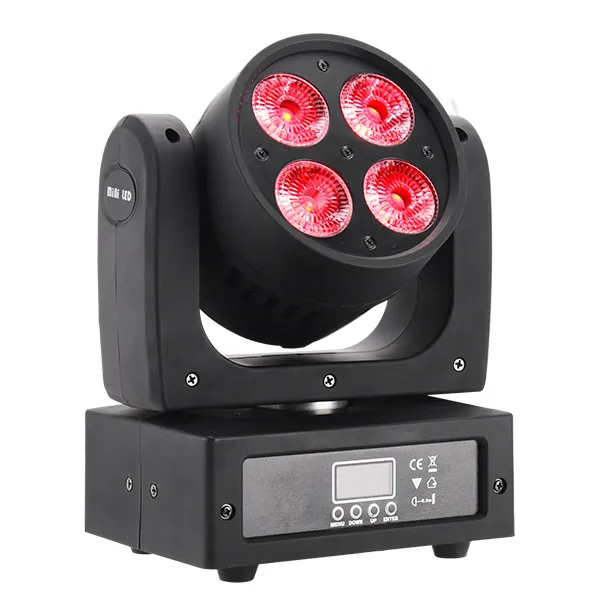

MS-CM64 4pcs 18W RGBWA+UV 6in1 leds
◪Part of MarsLite LED Moving Head Series, LED display, easy to control.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪The unique design comes from our company's designers
◪Very good for moving dj, small nightclub, disco bars.
Technical Data
LIGHT SOURCE: | LEDs: 4pcs 18W RGBWA+UV 6in1 leds |
LEDs average lifespan: >100,000hrs | |
Drive mode: constant current | |
Drive current(mA):400 | |
POWER SUPPLY: | Power consumption: Max. 60W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 11CH and 15CH optional | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
OPTICS: | Beam angle: 30° (fog lens and clear lens selectable) |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 6570LUX@1m, 1722LUX@2m, 271LUX@5m | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro and fade in & out macro | |
PAN-TILT: | Pan: 540° Tilt: 270 |
BODY: | Housing: Plastic, black and white optional, backing finished |
COOLING: | Cooling: forced air convection, with two silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light size:19.5*13.5*23.5CM | |
N.W.: 2.75kg | |
| Package size:29*22*28cm | |
Packing: Carton box or flight case optional |
Technical Details
Effect diagram

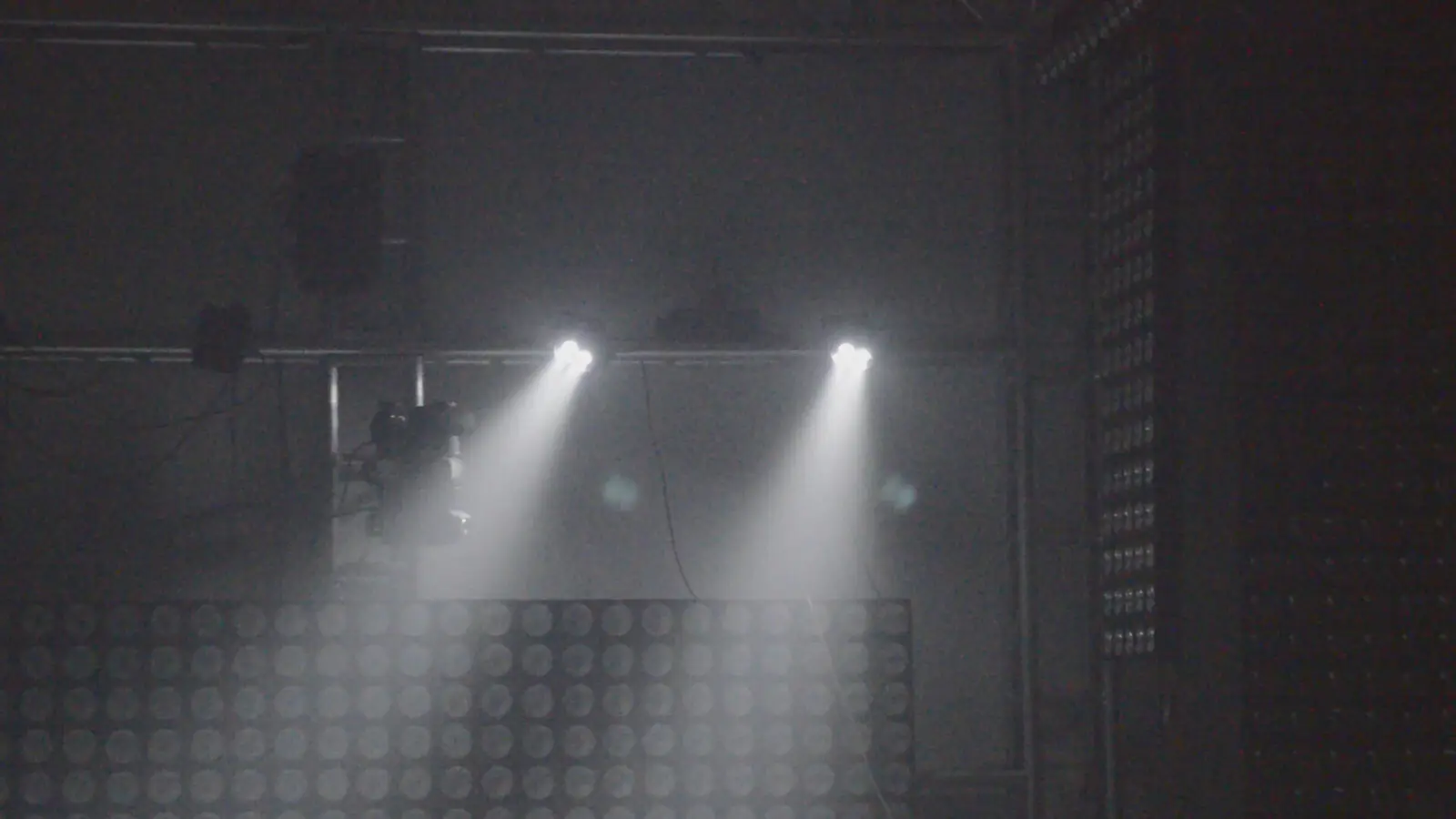

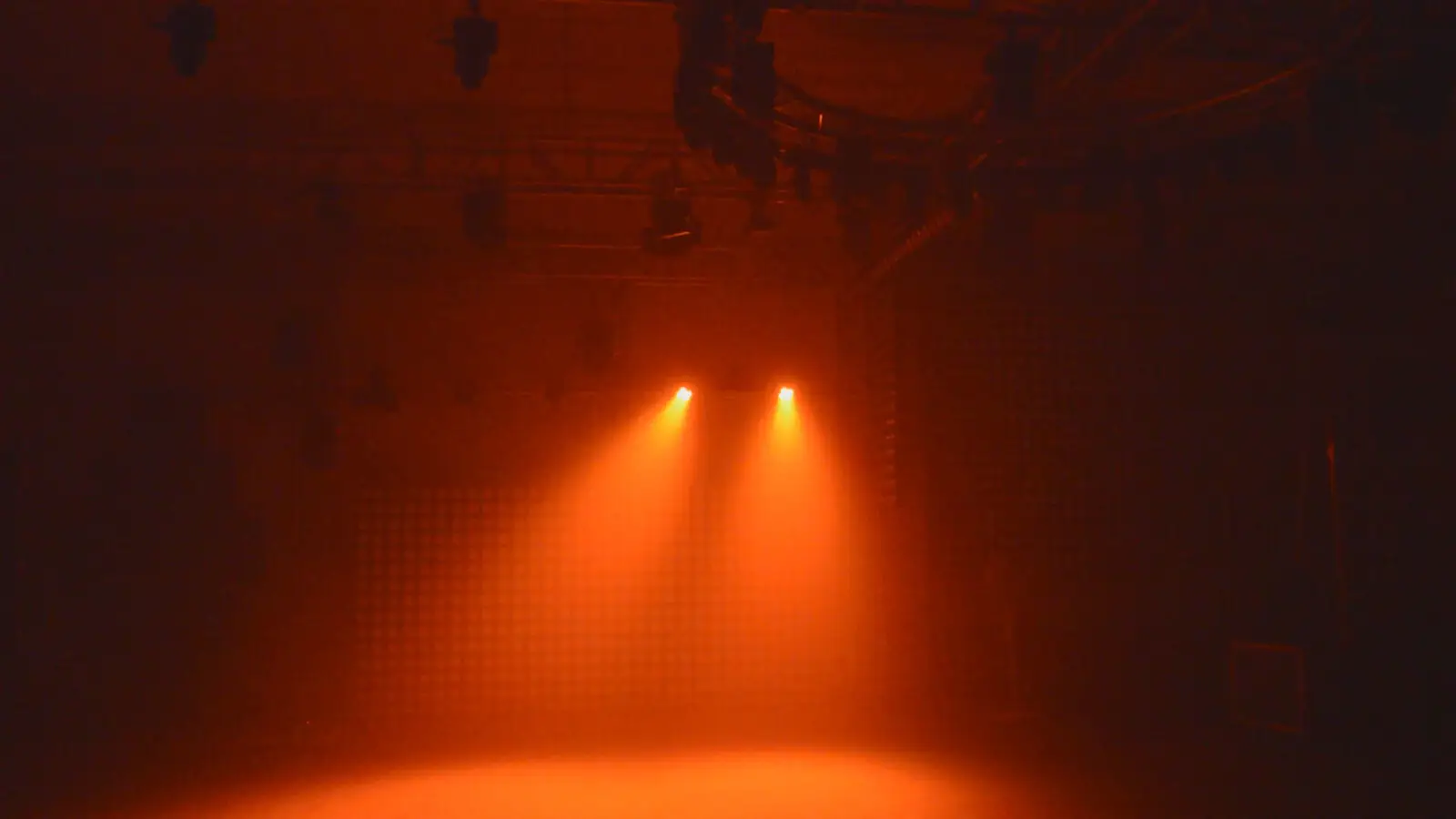

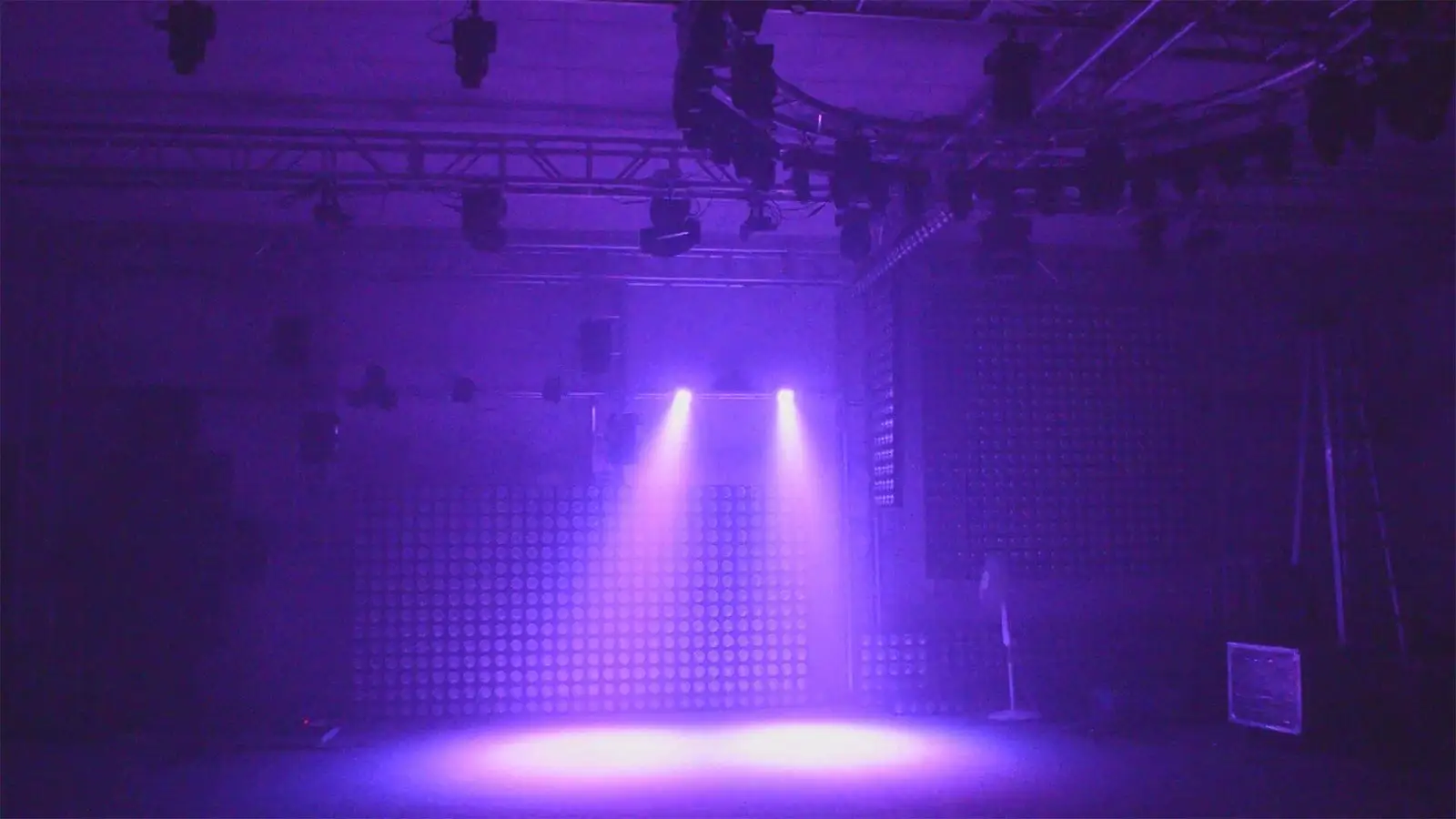

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
