Marslite smooth led moving head disco light supplier for DJ moving show
1. Marslite led spider moving head light is rigorously inspected. It is conducted by our QC team who not only checks the conventional parameters but also conducts a simulated exam in different humidity and temperature conditions. Products also have aesthetic advantages
2. The product features low maintenance. No sealers or special polishes are needed. People can only use soap and water to maintain. It emits light evenly with small shadows and low heat
3. Quality-focused: the product is a result of pursuing high quality. It is strictly inspected under the QC team who has the full right to take charge of the quality of the product. The product is also the closest to commercialization
4. Internationally-certified quality: The product, tested by the authoritative third-party, has been approved to meet with the widely-recognized international quality standards. Product is more cost-effective than other products
Product Overviews
Product Overviews

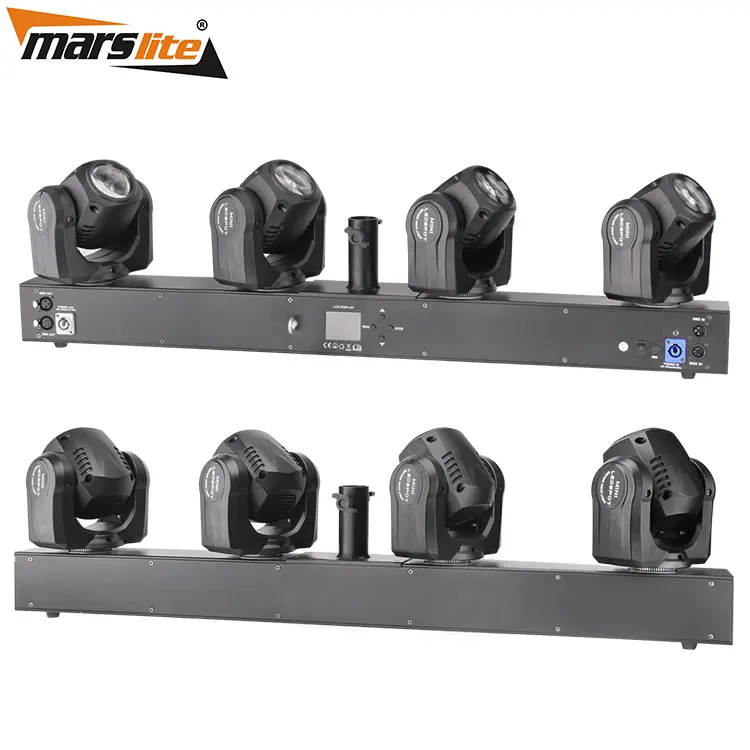

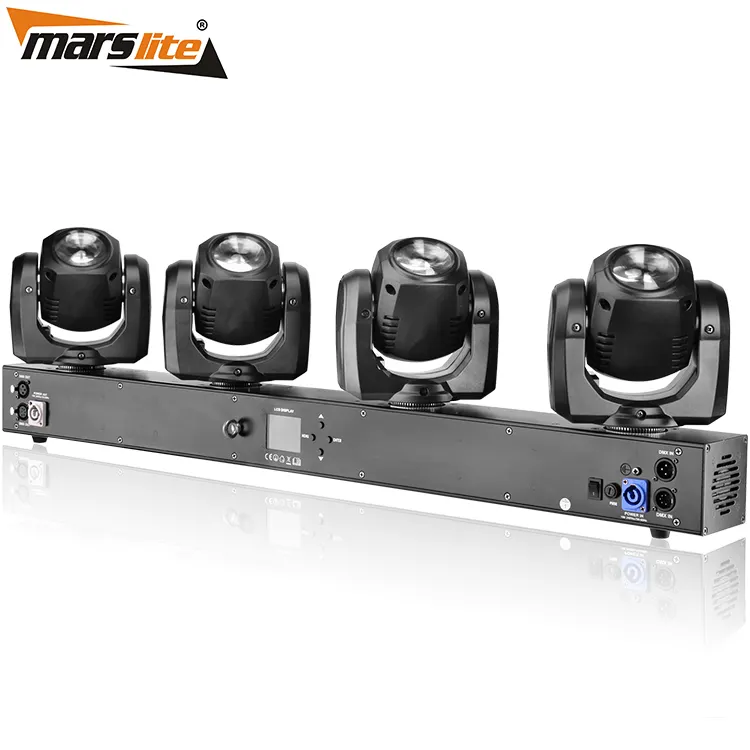

MS-MPS4-32FC 4*32W RGBW LEDs
◪The MARSLITE 4LED Beam Moving Head Light is powered by 4pcs 32W RGBW 4in1 high quality LEDs.
◪beam angle is 8 °, pan 540°and tilt 270 °rotation speed adjustable.
◪4LED Beam Moving Head Light is easy install.
◪sensitive sound control make super beam effect, clients also can control it by DMX512.
◪suit for disco, club, bar, party and DJ moving show,It’s mini led beam moving head light time!
Technical Data
LIGHT SOURCE: | LEDs: 4*32W RGBW leds |
LEDs average lifespan: >100,000hrs | |
Drive mode:Constant Current | |
Drive current(mA): 660 | |
OPTICS: | Beam angle: 6° |
Flicker free(refresh rate>4K Hz) | |
Light output(1mtr)@Red1:24000Lux@Green1:50000Lux@Blue1:80000Lux@White1:68000Lux | |
COLORS: | RGBW color mixing |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING: | Control mode: DMX,Auto run,Master/Slave and Sound-active |
DMX channels: 6CH, 10CH, 19CH, 32CH, 56CH optional | |
Setting and addressing: LCD | |
DMX data In/Out: XLR 3Pin&XLR 5pin, Rj45 | |
PAN-TILT: | Pan: 540° (Speed adjustable) |
Tilt: 230° (Speed adjustable) | |
BODY: | Housing: Metal, plastic |
Housing color: black | |
Housing surface treatment: baking finished | |
POWER SUPPLY: | Power consumption: Max. 200W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with six silent fan | |
Cooling fan speed auto change according to temperature | |
Cooling fans auto start once LED source light up | |
SAFETY DEVICES: | Electronic protection against short circuit |
With safety chain throught holes at the rear | |

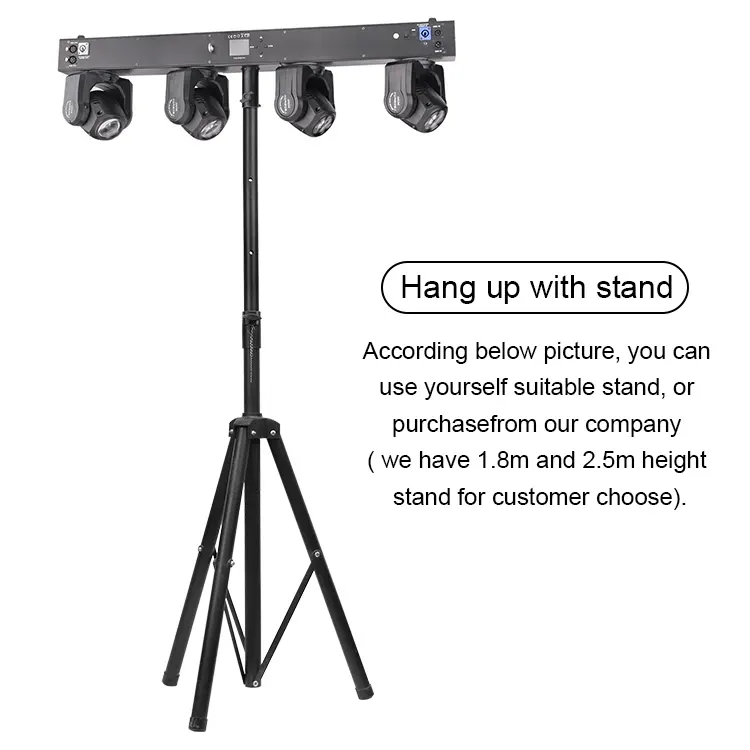

Rigging & Assembling | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificates: CE&RoHS | |
Environment temp: -20℃-40℃ | |
Light size: 100×26×9cm | |
N.W.:11kg | |
G.W.:13.5kg | |
Package size:109*36*18cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

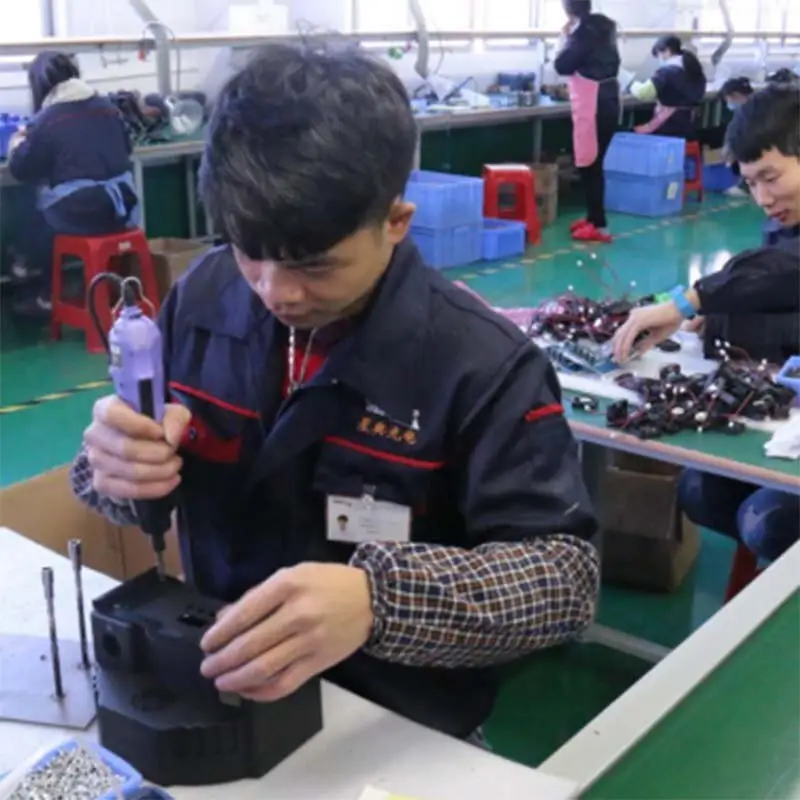

Production line
Packing
