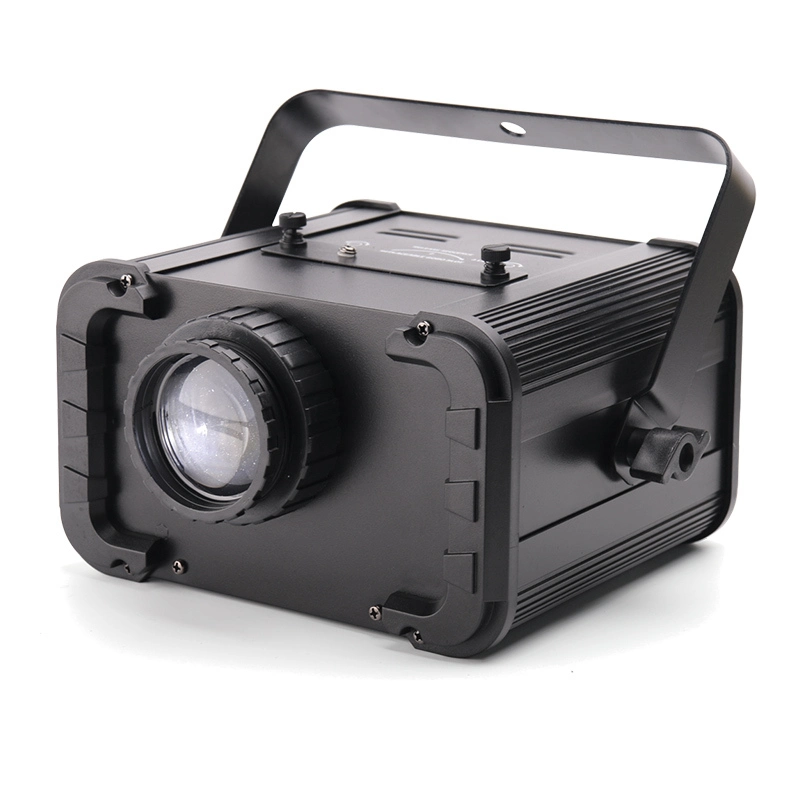

High Power 80W Logo Projector LED Effect Gobo Light MS-LGP80
Product Video
Product Overviews
MS-LGP80 1pc 80W White LED
◪The projector has IR remote control function which is more convenient.
◪Logo could be changeable until the logo image is clear.
◪Built in DMX, Master/slave mode.
◪The light has 23/31/42 angle optional lens to adjust the logo's angle.
Technical Data
LIGHT SOURCE: | LEDs:1pc 80W White LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current:5.6A | |
POWER SUPPLY: | Power consumption:120W |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Gobo diameter:45mm |
Beam angle: 23°/31°/42° | |
Light output Lux data(1M):23°:3770lux,31°:2300lux,42°:12520lux | |
CONTROL AND PROGRAMMING: | Wireless control: IR remote control |
Control mode: DMX,auto run,Master/Slave and Sound-active | |
DMX channels: 3CH | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color fade in & out macro | |
BODY: | Housing: die-cast aluminium |
Housing color: black | |
Housing surface treatment: baking finished | |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Cooling: forced air convection, with one silent fan | |
SAFETY DEVICES: | Electronic protection against short circuit |
Wigh safety chain throught holes at teh rear | |
RIGGING & ASSEMBLING | |
Certificate: | CE and RoHs are available |
Warranty: | One year warranty |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Light size:28*23.5*22.5cm | |
N.W.:3.4kg | |
G.W.:4.3kg | |
Packing Size:21*26.5*23cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
