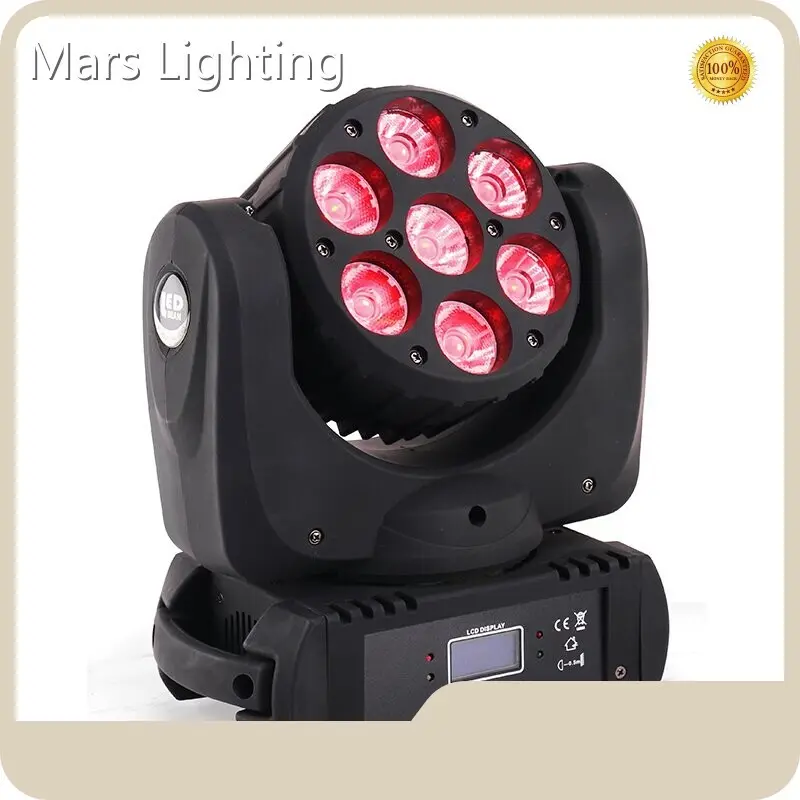

Mini Moving Head Light AC100-240V 50/60Hz 120WSupply
Product details of the mini moving head light
Quick Detail
mini moving head light is simple in design and convenient in construction. The product has various quality attributes and high performance. Our mini moving head light is widely used in industry. Our mini moving head light are of great performance for its highest quality.
Product Introduction
Mars Lighting's mini moving head light is of exquisite workmanship, which is reflected in the details.
Product Video
Product Overviews

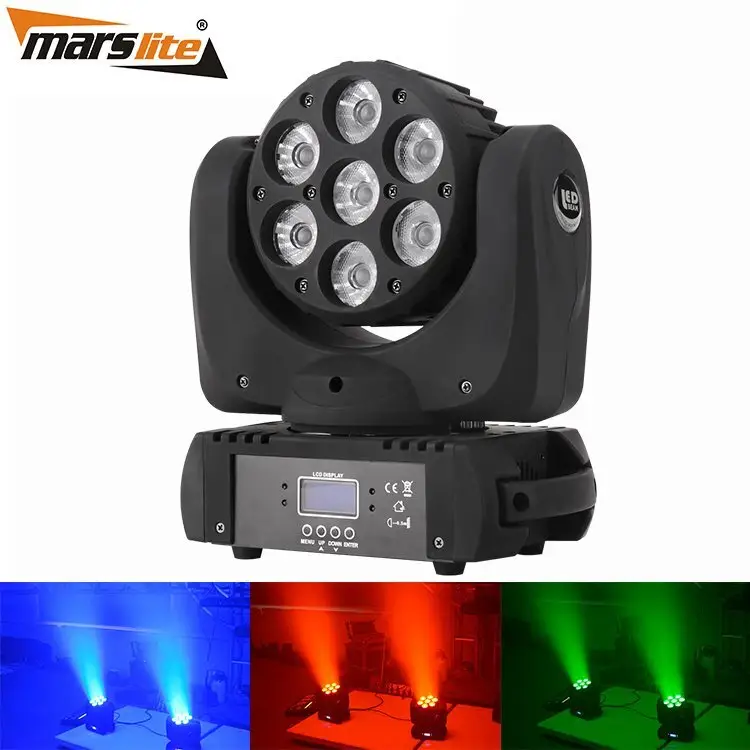

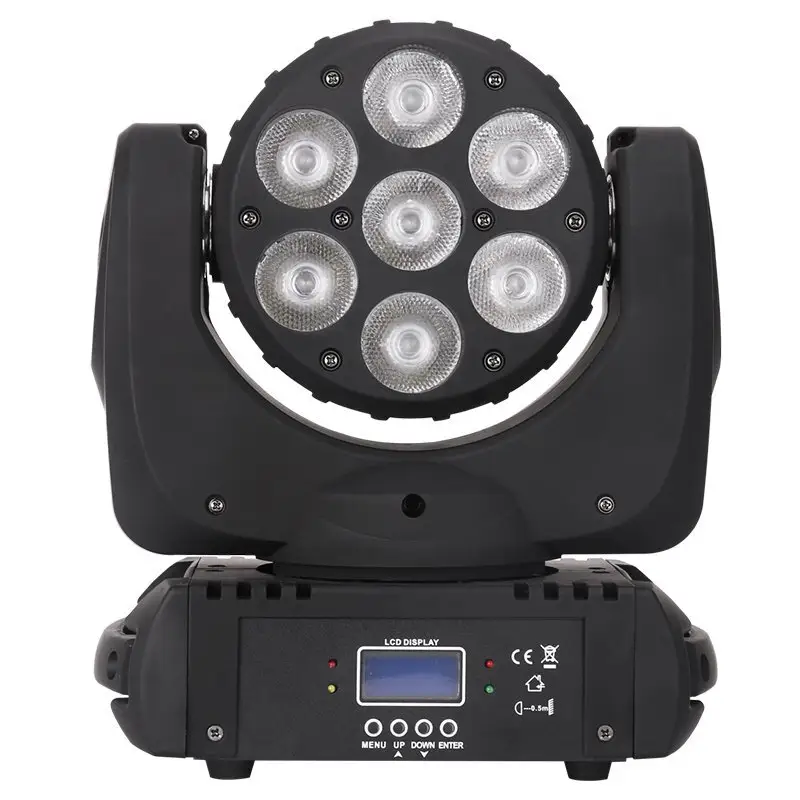

MS-CM07 7pcs 12W RGBW 4in1 LED
◪The MS-CM07 7*12w 4in1 led moving head offers a plethora of features that will take your next event to a whole new level.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪It also offers a wide range of customization options for more advanced users, including 9CH and 13CH DMX channels.
◪Four model, wide moving degrees(Pan/Tilt:540°/270°),fast moving speed make your light shows to a new level.
◪Built-in sound active, auto run, DMX and master/slave mode.
Technical Data
LIGHT SOURCE : | LEDs: 7pcs 12W RGBW 4in1 LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): R:650mA, G/B/W:750mA | |
OPTICS: | Beam angle: 8° |
Light output(1mtr):Red:9500, Green:17000, Blue:26000, White:27000, Full bright:700000 | |
EFFECTS : | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
| Built-in color changeing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING : | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 9CH, 13CH | |
Setting and addressing:4-digit LED | |

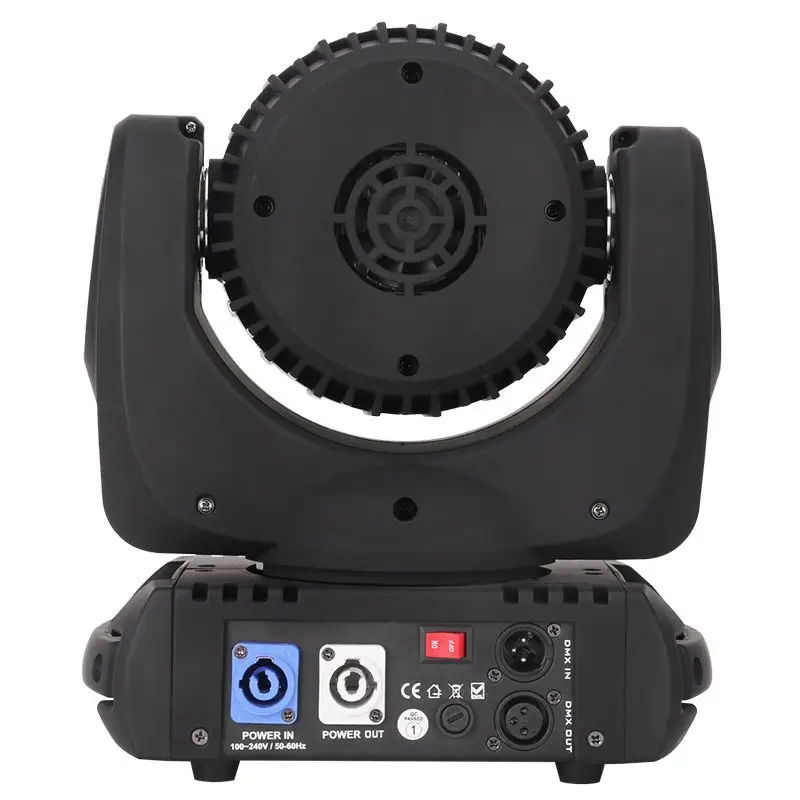

DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
PAN-TILT : | Pan/Tilt:540°/270° |
BODY : | Housing: Metal & Plastic, black. |
COOLING & THERMAL MANAGEMENT : | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with two silent fan | |
ENVIRONMENT AND PHYSICAL : | IP rating: IP33 |
Certificate:CE,RoHs | |
Environment temp: -20℃-40℃ | |
Light size:30*15.5*26.5cm | |
N.W.:4.7kg | |
G.W.:5kg | |
Package size:37*33*23CM |
Technical Details
Effect diagram

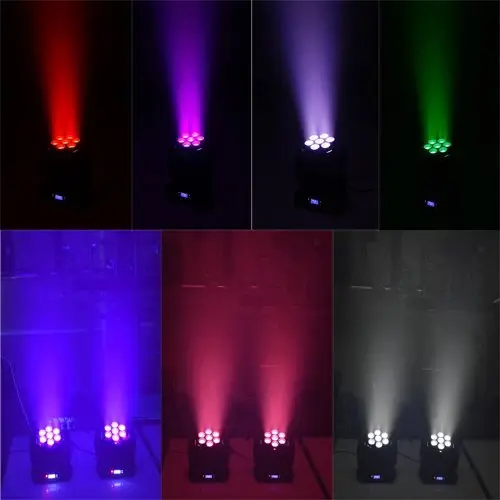

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
