Mini Led Matrix OEM by Marslite
Product details of the mini led matrix
Product Information
With time going on, the advantages for mini led matrix are more obvious and attract more customers. The quality of the product is under the guarantee of international certificates. The product has been engaged in the industry for many years and is well-known with its outstanding features.
Product Video
Product Overviews

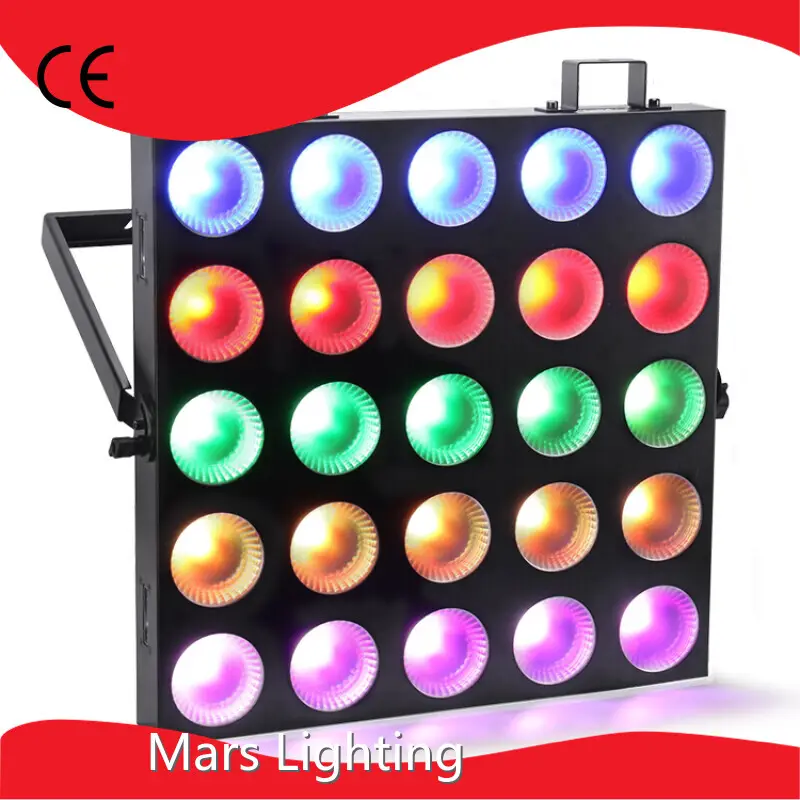

MS-MQD25 25X10W 4000K Quad color LED
◪The 5X5 head LED matrix bar lgiht with RGBW tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGBW mixed color at your next event.
◪Creates smooth and rich RGBW color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects.
◪Built-in sound active, ArtNet, DMX and master/slave, foot controller mode.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 25X10W 4000K Quad color LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 300W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 48° |
Lens: Fronst lens or Clear lens optional | |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 11270LUX@1m, 4110LUX@2m, 798LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,ArtNet,Master/Slave and Sound-active |
DMX channels: 1/4/5/25/75/100CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: Metals, black baking finished |
COOLING : | Cooling: forced air convection, with four silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:58*58*12cm | |
N.W.:13kg |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Advantage
• Adhering to the 'customer first' principle, our company builds a good sales service system, and promises to provide customers with quality pre-sales, sales, after-sales service.
• Mars Lighting not only focuses on the domestic market, but also strives to expand the overseas market.
• Founded in our company has been continuously developed in the years. With strong management, technology and service strength, we have successfully entered the leading position in the industry.
• Mars Lighting's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
If you have any needs, just come to Mars Lighting. Your consultation is welcome!
Tel: +86-18664521309
Email: mars@mars-light.com
Fax: +86-020-37705982
