LED Moving Head Series Mini Led Spot Moving Head Light Metal TT/ Paypal/ Western Union Dealer
Product details of the mini led spot moving head light
Product Introduction
From material to design of mini led spot moving head light, there are professional team to make them best. Apart from the quality meeting the industry standard, the product also has a longer service life compared with others. Paying more attention to the quality of mini led spot moving head light will contribute to the brand image establishment of Marslite.
Product Video
Product Overviews

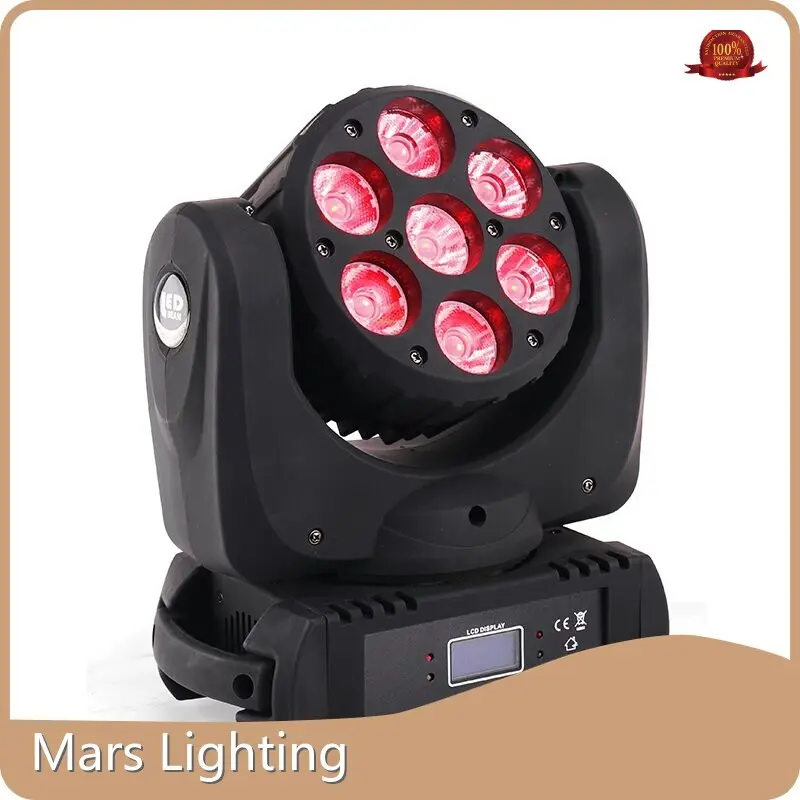

MS-CM07 7pcs 12W RGBW 4in1 LED
◪The MS-CM07 7*12w 4in1 led moving head offers a plethora of features that will take your next event to a whole new level.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪It also offers a wide range of customization options for more advanced users, including 9CH and 13CH DMX channels.
◪Four model, wide moving degrees(Pan/Tilt:540°/270°),fast moving speed make your light shows to a new level.
◪Built-in sound active, auto run, DMX and master/slave mode.
Technical Data
LIGHT SOURCE : | LEDs: 7pcs 12W RGBW 4in1 LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): R:650mA, G/B/W:750mA | |
OPTICS: | Beam angle: 8° |
Light output(1mtr):Red:9500, Green:17000, Blue:26000, White:27000, Full bright:700000 | |
EFFECTS : | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
| Built-in color changeing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING : | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 9CH, 13CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
PAN-TILT : | Pan/Tilt:540°/270° |
BODY : | Housing: Metal & Plastic, black. |
COOLING & THERMAL MANAGEMENT : | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with two silent fan | |
ENVIRONMENT AND PHYSICAL : | IP rating: IP33 |
Certificate:CE,RoHs | |
Environment temp: -20℃-40℃ | |
Light size:30*15.5*26.5cm | |
N.W.:4.7kg | |
G.W.:5kg | |
Package size:37*33*23CM |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
