High-Qualitymoving Head Mini AC100-240V 50/60Hz Great
Product details of the moving head mini
Product Description
At Guangzhou Mars Lighting Technology Co., Ltd., we offer the following high quality material formulations, including moving head mini. Strict quality control is carried out to ensure product quality and performance in line with industry standards. We have successfully applied for patents of technology for moving head mini.
Product Video
Product Overviews

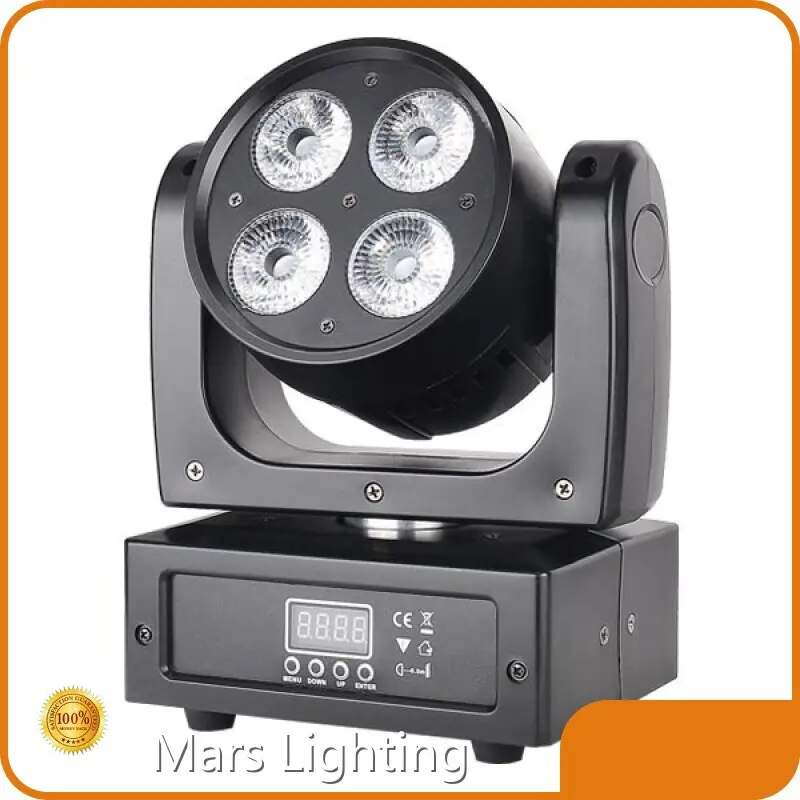

MS-CM64 4pcs 18W RGBWA+UV 6in1 leds
◪Part of MarsLite LED Moving Head Series, LED display, easy to control.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪The unique design comes from our company's designers
◪Very good for moving dj, small nightclub, disco bars.
Technical Data
LIGHT SOURCE: | LEDs: 4pcs 18W RGBWA+UV 6in1 leds |
LEDs average lifespan: >100,000hrs | |
Drive mode: constant current | |
Drive current(mA):400 | |
POWER SUPPLY: | Power consumption: Max. 60W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 11CH and 15CH optional | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
OPTICS: | Beam angle: 30° (fog lens and clear lens selectable) |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 6570LUX@1m, 1722LUX@2m, 271LUX@5m | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro and fade in & out macro | |
PAN-TILT: | Pan: 540° Tilt: 270 |
BODY: | Housing: Plastic, black and white optional, backing finished |
COOLING: | Cooling: forced air convection, with two silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light size:19.5*13.5*23.5CM | |
N.W.: 2.75kg | |
| Package size:29*22*28cm | |
Packing: Carton box or flight case optional |
Technical Details
Effect diagram

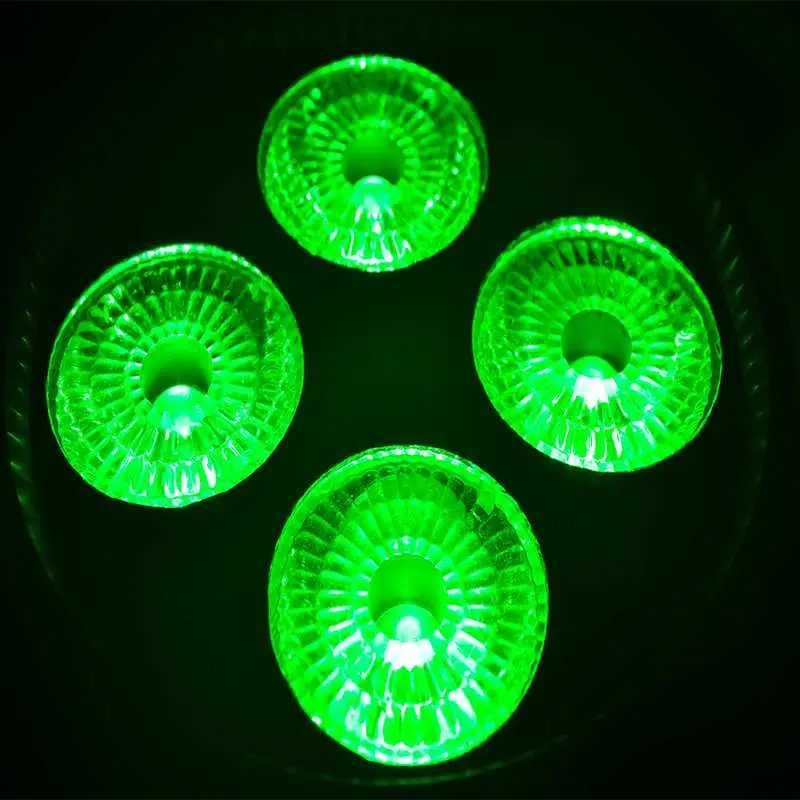

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
