Product Overviews
Product Overviews

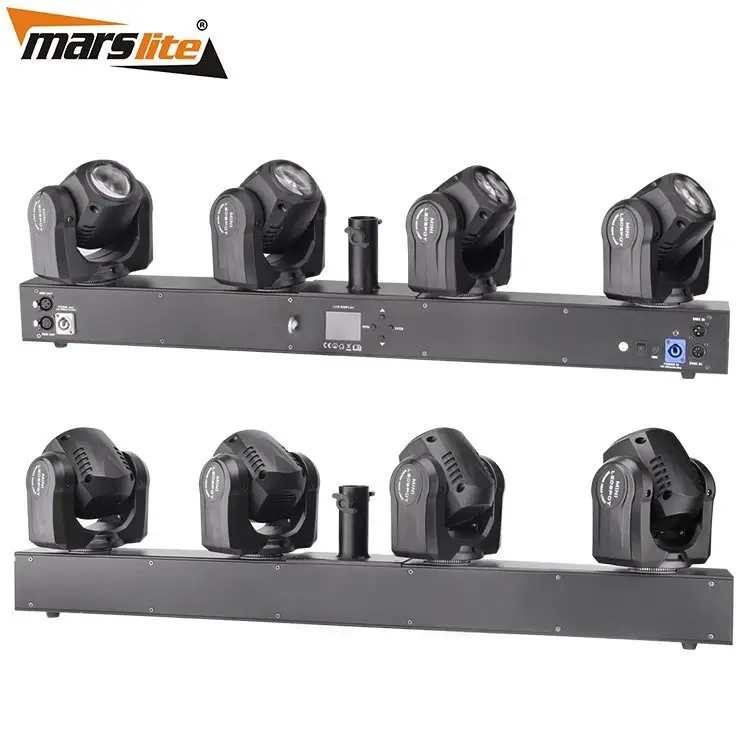

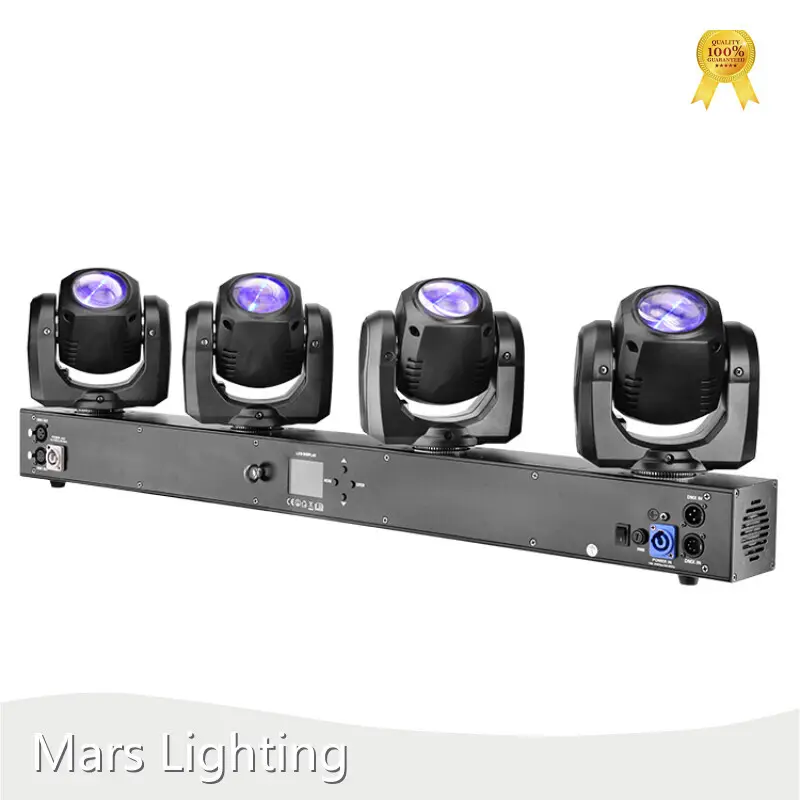

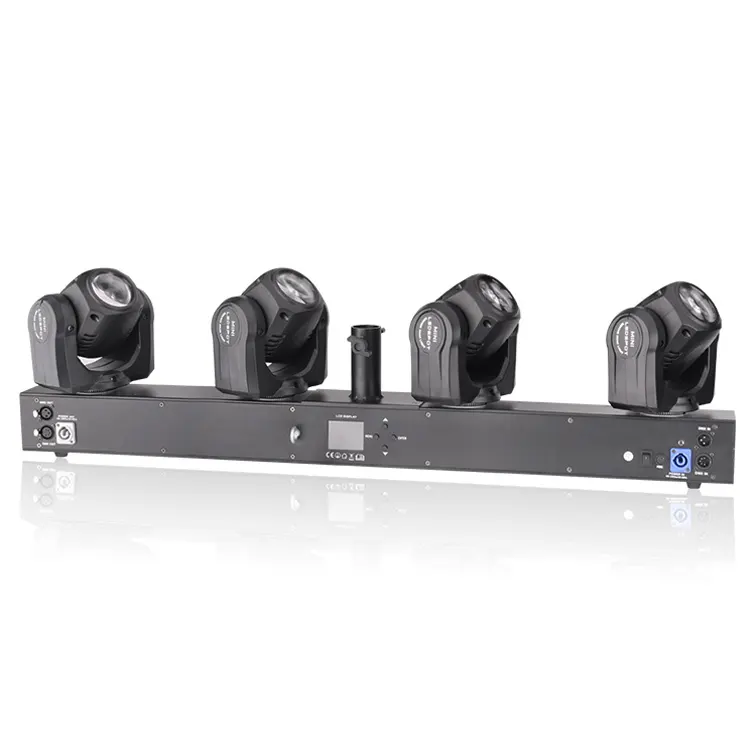

MS-MPS4-32FC 4*32W RGBW LEDs
◪The MARSLITE 4LED Beam Moving Head Light is powered by 4pcs 32W RGBW 4in1 high quality LEDs.
◪beam angle is 8 °, pan 540°and tilt 270 °rotation speed adjustable.
◪4LED Beam Moving Head Light is easy install.
◪sensitive sound control make super beam effect, clients also can control it by DMX512.
◪suit for disco, club, bar, party and DJ moving show,It’s mini led beam moving head light time!
Technical Data
LIGHT SOURCE: | LEDs: 4*32W RGBW leds |
LEDs average lifespan: >100,000hrs | |
Drive mode:Constant Current | |
Drive current(mA): 660 | |
OPTICS: | Beam angle: 6° |
Flicker free(refresh rate>4K Hz) | |
Light output(1mtr)@Red1:24000Lux@Green1:50000Lux@Blue1:80000Lux@White1:68000Lux | |
COLORS: | RGBW color mixing |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING: | Control mode: DMX,Auto run,Master/Slave and Sound-active |
DMX channels: 6CH, 10CH, 19CH, 32CH, 56CH optional | |
Setting and addressing: LCD | |
DMX data In/Out: XLR 3Pin&XLR 5pin, Rj45 | |
PAN-TILT: | Pan: 540° (Speed adjustable) |
Tilt: 230° (Speed adjustable) | |
BODY: | Housing: Metal, plastic |
Housing color: black | |
Housing surface treatment: baking finished | |
POWER SUPPLY: | Power consumption: Max. 200W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with six silent fan | |
Cooling fan speed auto change according to temperature | |
Cooling fans auto start once LED source light up | |
SAFETY DEVICES: | Electronic protection against short circuit |
With safety chain throught holes at the rear | |
Rigging & Assembling | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificates: CE&RoHS | |
Environment temp: -20℃-40℃ | |
Light size: 100×26×9cm | |
N.W.:11kg | |
G.W.:13.5kg | |
Package size:109*36*18cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

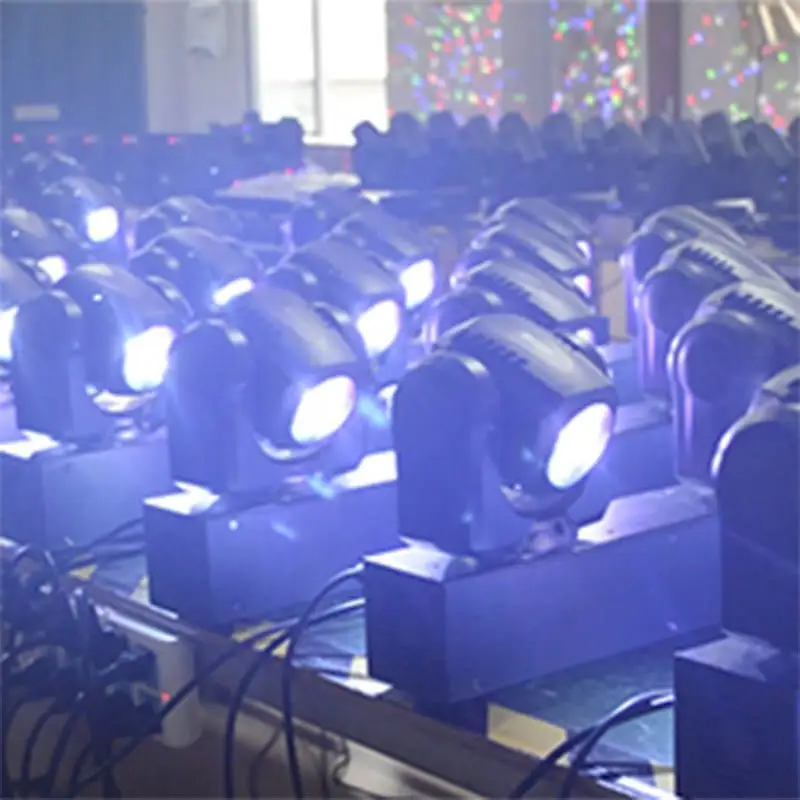

Production line
Packing
