Custom Made Linear Led Wall Washer Light
Product details of the linear led wall washer light
Quick Overview
While designing Marslite linear led wall washer light, we uphold the principles of innovation and functionality. The performance of the product conforms to the very latest quality standards. We are a specialist in producing linear led wall washer light .
Product Information
Mars Lighting's linear led wall washer light has superior quality. The specific details are presented in the following section.
Product Overviews

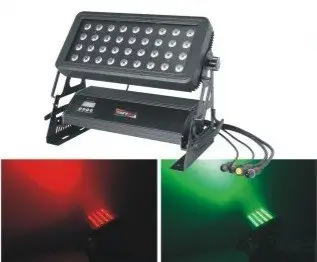

MS-BW36 36pcs RGBW 4in1 10W LED
◪The LED Wall Washer Ip65 bar lgiht with RGBW tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGBW mixed color at your next event.
◪Built-in Stand alone, DMX and master/slave mode.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 36pcs RGBW 4in1 10W LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 500 | |
POWER SUPPLY: | Power consumption: Max. 360W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 25° (15° and 45° available) |
Flicker free(refresh rate>400 Hz) | |
Light output(full bright): 27000Lux@1M,7350Lux@2M,1220Lux@5M | |
CONTROL AND PROGRAMMING: | Control mode: DMX, Master/Slave and Stand alone |
DMX channels: 4,8,12CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
BODY: | Housing: Metals, black baking finished |
COOLING & THERMAL MANAGEMENT : | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP65 |
Certificate: CE and RoHs | |
| Dustproof at the front of head: tempered glass | |
Environment temp: -20℃-40℃ | |
Light Size:68*42*60cm | |
N.W.:15kg |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

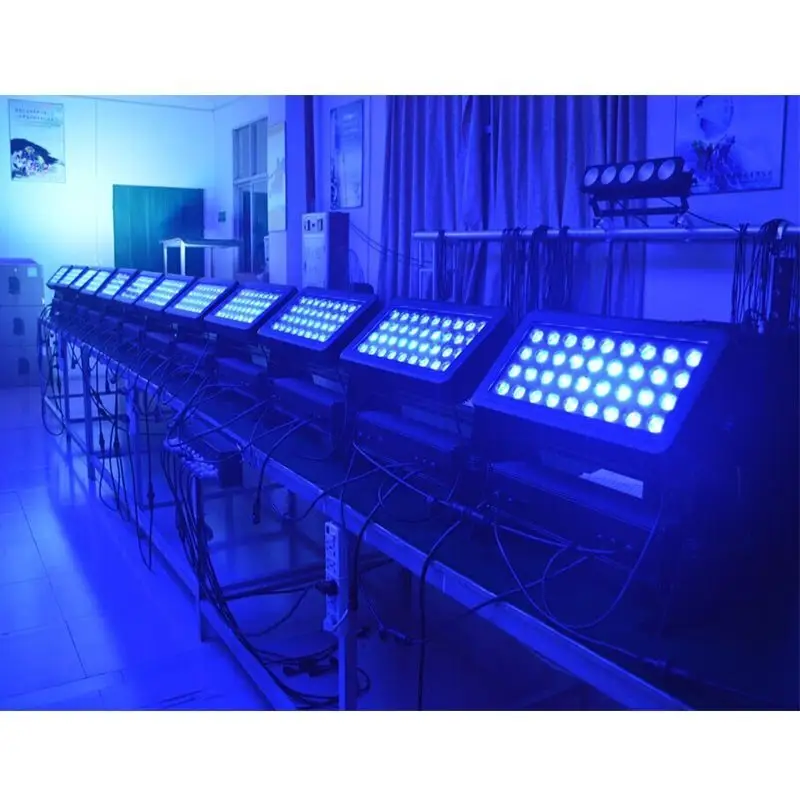

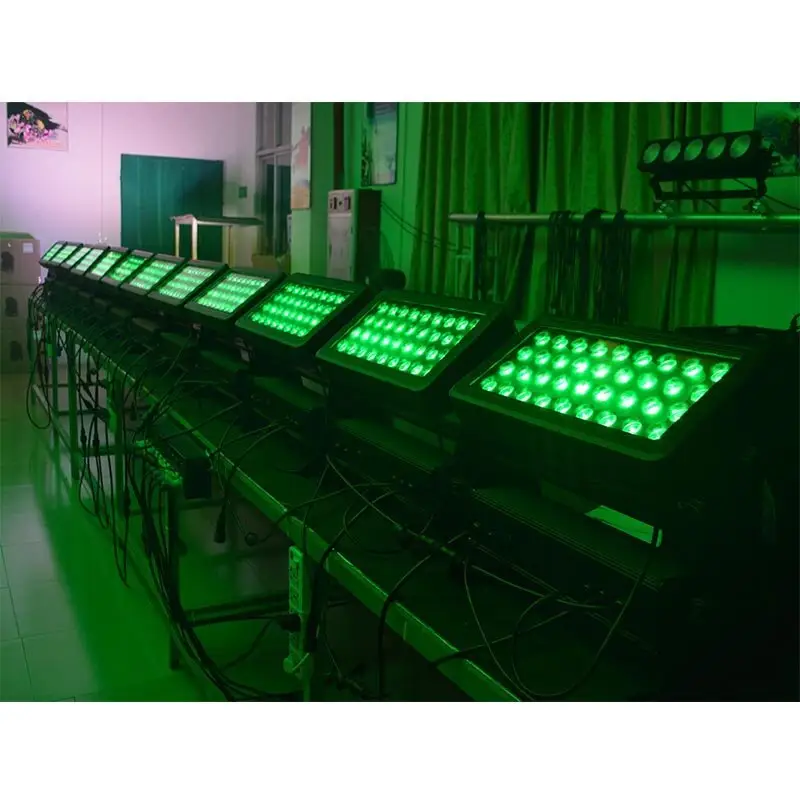

Test chart
Production line
Packing
