Marslite rgbw led matrix beam series for club
- Mars Lighting is dedicated to providing quality and cost-effective services for customers.
1. Marslite led matrix beam is constructed utilizing advanced processing machines. These machines include CNC cutting&drilling machines, laser engraving machines, painting&polishing machines, etc.
2. The quality of this product is thoroughly inspected by our quality check team.
3. Guangzhou Mars Lighting Technology Co., Ltd. makes himself develop rapidly by abundant design and manufacturing capacity.
4. Guangzhou Mars Lighting Technology Co., Ltd. is a significant multi color led lights manufacturer in led matrix beam industry.
Product Video
Product Overviews

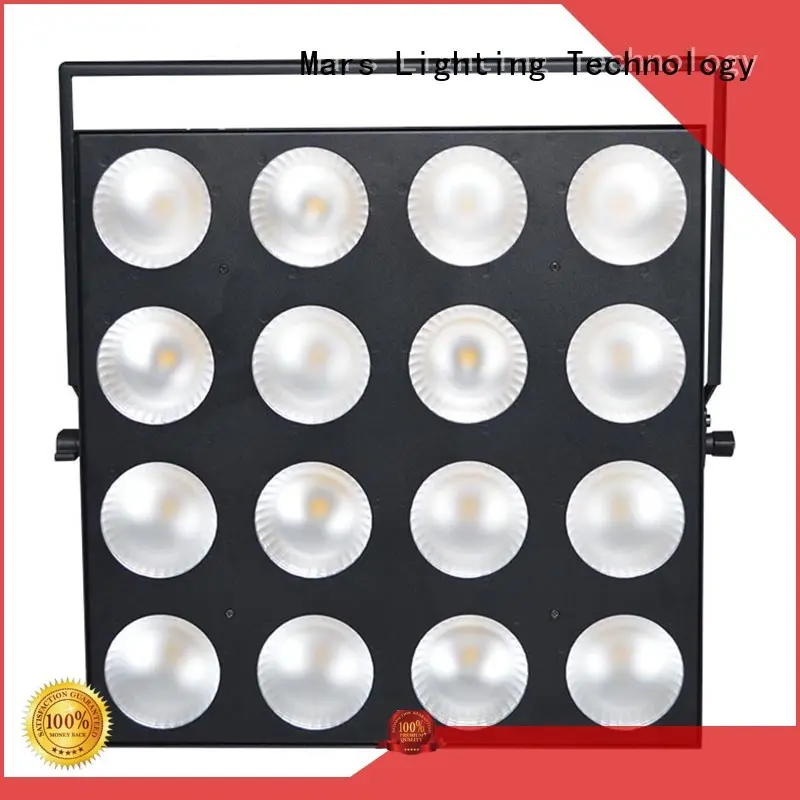

MS-16TS 16pcs 30W COB RGB 3in1 leds
◪The 4X4 head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs.
◪Built-in sound active, ArtNet, DMX and master/slave, foot controller mode.
◪ It’s suitable for disco dance hall,club,bar,party,mobile DJ and so on.
Technical Data
LIGHT SOURCE: | LEDs: 16pcs 30W COB RGB 3in1 leds |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 500W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Blue and White powercon | |
OPTICS: | Beam angle: 31° |
Lens: Fronst lens or Clear lens optional | |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 2310LUX@1m, 566LUX@2m, 96LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,ArtNet,Master/Slave and Sound-active |
DMX channels: 1,3,4,6,16,18,48,49,50,51CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: Aluminium, black backing finished |
COOLING : | Cooling: forced air convection, with four silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:47.5*47.5*13.5cm | |
| N.W.:11kg | |
| G.W.:13kg | |
Package Size:57*57*19CM |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Features
1. Guangzhou Mars Lighting Technology Co., Ltd. has been identified and praised by the market due to the excellency in multi color led lights development and manufacture.
2. The technology level in Guangzhou Mars Lighting Technology Co., Ltd. keeps in line with word-class level.
3. Marslite aims to be a highly valued service brand. Welcome to visit our factory! This brand is now a global renowned speaker for led matrix beam . Welcome to visit our factory! Guangzhou Mars Lighting Technology Co., Ltd. focuses on providing five-star customer service to customers. Welcome to visit our factory! Marslite is committed to improving led matrix panel with the goal of becoming a popular brand on the market. Welcome to visit our factory!
