Marslite quad led matrix rgb manufacturer for stage
1. Marslite buy led matrix will be analyzed after it is produced. It will be professionally analyzed by our technicians in the perspectives of chemical, mineralogical, and particle size. Our products emphasizes the value of innovation and design
2. Mars Lighting Technology 's production equipment and test equipment are on the leading level in the industry. Products also have aesthetic advantages
3. The QC team carries out a strict test at every stage to ensure its quality. The color temperature is constant and uniform
4. Its quality is secured before the loading. It is an economical and efficient light
Product Overviews

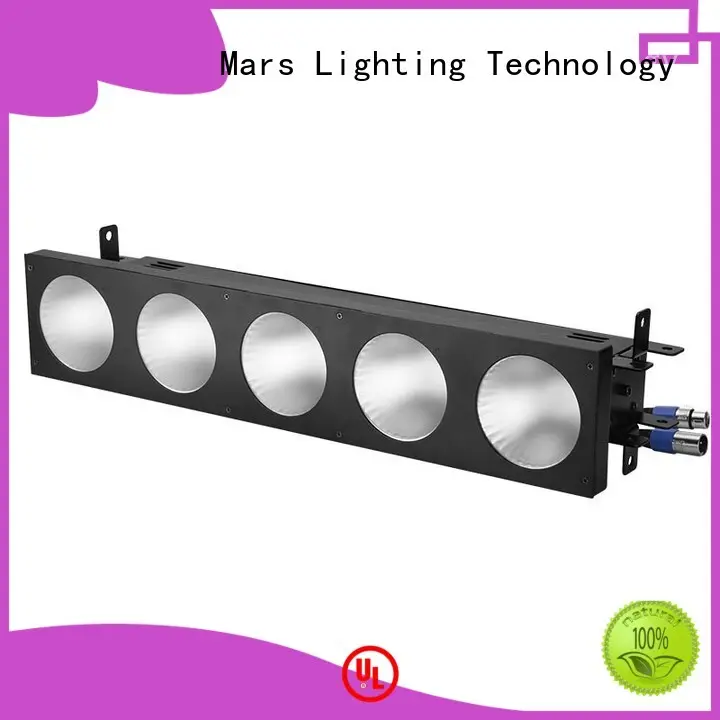

MS-CW150 5pcs 30W cool white LEDs
◪The 5 head LED matrix wash light with 30w cool white COB LED, give you a good stage show.
◪LED can be controlled pixel by pixel, delivering versatile effects.
◪It's suitable for disco dance hall, club, bar, party, mobile DJ and so on.
Technical Data
LIGHT SOURCE: | LEDs:5pcs 30W cool white LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA):667 | |
POWER SUPPLY: | Power consumption:Max.150W |
| Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 80° (fog lens and clear lens selectable) |
Flicker free(refresh rate>4K Hz) | |
CONTROL AND PROGRAMMING: | Control mode: DMX512, Auto, Master/Slave, Matrix software and Sound-active |
DMX channels: 1CH, 2CH, 5CH, 7CH | |
| Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
BODY: | Housing: Paint aluminium |
COOLING: | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Light size:62*15*16cm | |
N.W.:3.5kg | |
Packing:Carton box or flight case optional |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Test chart
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Features
1. Guangzhou Mars Lighting Technology Co., Ltd. has exported led matrix rgb to global market with high quality. buy led matrix technology is performed by our experienced technicians to make sure the quality of rgb led panel light.
2. Produced by advanced technology, matrix panel is of high quality.
3. Guangzhou Mars Lighting Technology Co., Ltd. has established and improved the process assurance system. We always keep on positive aspiration. We insist on devoting ourselves to serving our clients and strive for recognition among the leaders in this industry around the globe.
