Marslite equipment led par rgbw series for discotheques
1. The manufacturing of Marslite led par moving head basically involves processes of plasticizing, mixing, calendering or extrusion, forming, punching, cutting and vulcanizing.
2. The product is not easy to rust. During the surface treatment, it has undergone the salt mist tests, including neutral salt mist and acid-salt spray.
3. Excellent service attitude and hard work is the solemn promise of Guangzhou Mars Lighting Technology Co., Ltd..
Product Video
Product Overviews

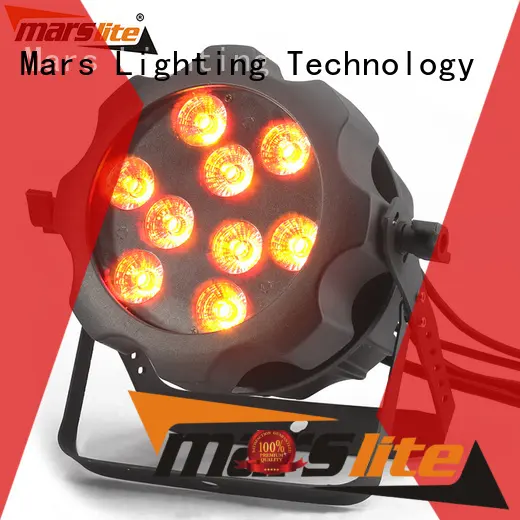

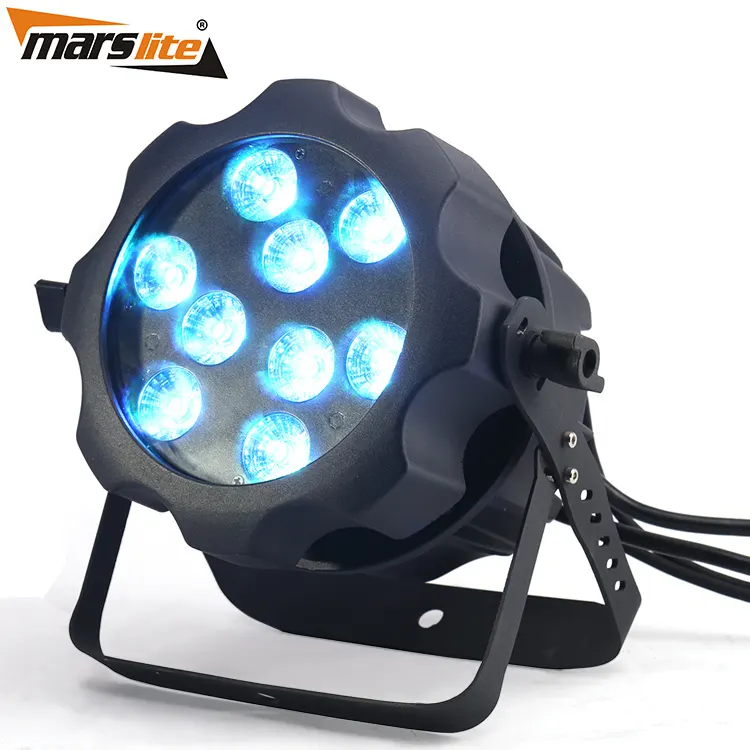

MS-BW169 9 pcs RGBWA+UV 6IN1 18W LEDs
◪The 9pcs 18W RGBWA+Purple 6in1 led par light is an IP65 outdoor rated compact Wash Fixture, create rich hues and smooth color mixing for stage or wall washing.
◪This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 169W.
◪If you have ever needed an all-in-one solution to your lighting needs, the MS-BW169 from Marslite is just for you
◪Perfect for up-lighting, stage washing, and wall washing.
Technical Data
Name: | High Quality 9*18W RGBWA+UV 6IN1 Waterproof led par can light |
Type: | MS-BW169 |
LIGHT SOURCE: | LEDs: 9pcs multichips, 18W RGBWA+UV 6-IN-1 |
LEDs: 9pcs multichips, 18W RGBWA+UV 6-IN-1 | |
Drive mode: constant current | |
Drive current(mA): 480 | |
POWER SUPPLY: | Power consumption: Max. 169W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>4K Hz) |
Light output(full bright): 11280LUX@1m, 2760LUX@2m, 485LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 2/3/3-1/4/5/6/9CH | |

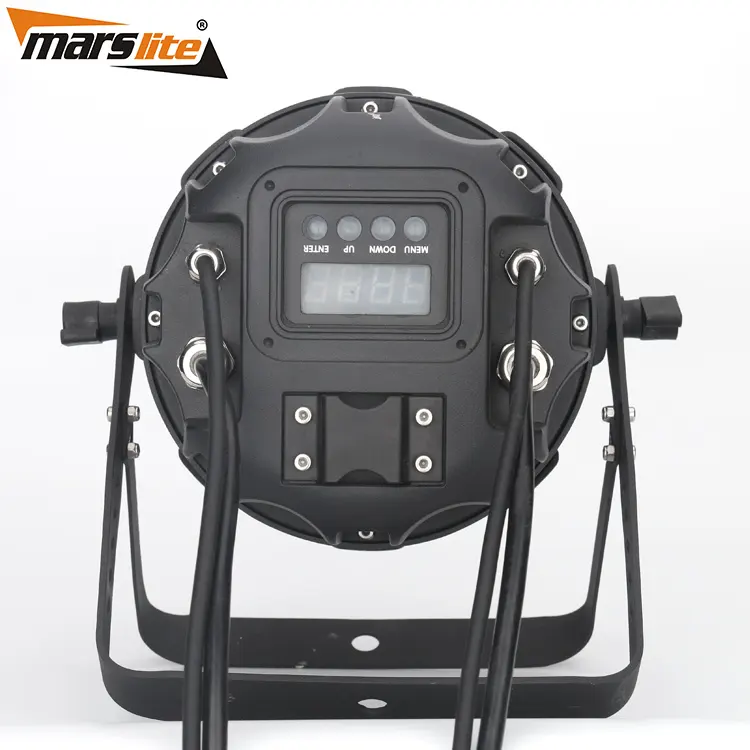

Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin (Waterproof) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changeing macro, fade in & out macro | |
BODY: | Housing: Aluminium, black and white optional, baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP65 |
Environment temp: -20℃-40℃ | |
Certificate: CE and RoHs | |
Light size:27*23.5*22cm | |
N.W.: 4.3kg | |
G.W.:6kg | |
Package Size:29*29*29cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

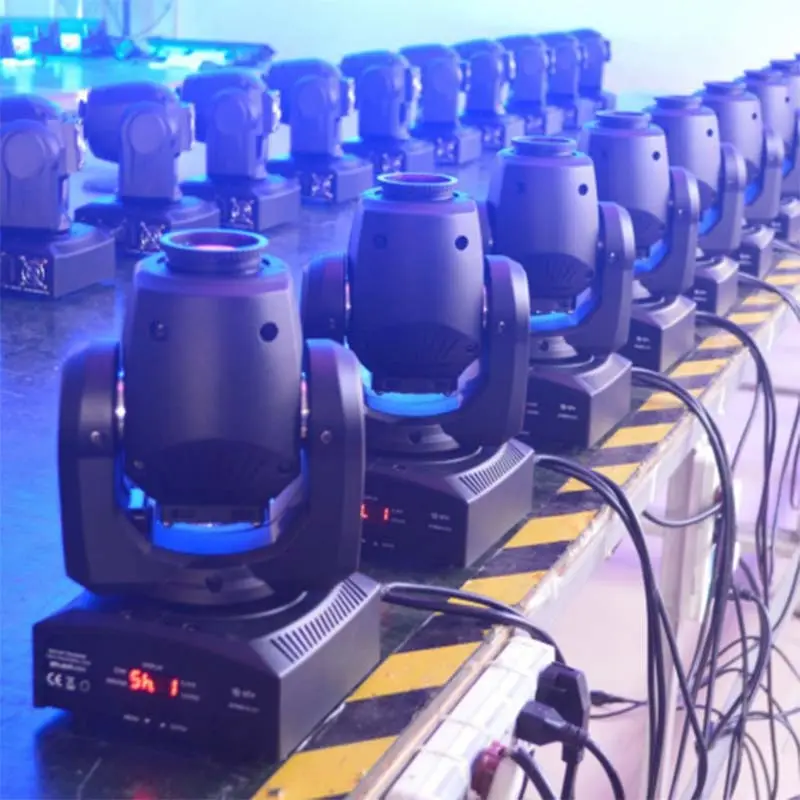

Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Features
1. Guangzhou Mars Lighting Technology Co., Ltd. provides high quality led par rgbw with advanced technology.
2. We have a team of skilled workers. They are equipped with some required manufacturing expertise and skills and have the ability to troubleshoot machine issues and perform repairs or assembly as needed.
3. Marslite has great ambitions for the development of the led par stage lights market. Check now! Guangzhou Mars Lighting Technology Co., Ltd. can help you improve your reputation and visibility. Check now! Our best to you and your par lights from the team at Mars Lighting Technology . Check now! Guangzhou Mars Lighting Technology Co., Ltd. will tap into the our whole strength to provide you with the best. Check now!
