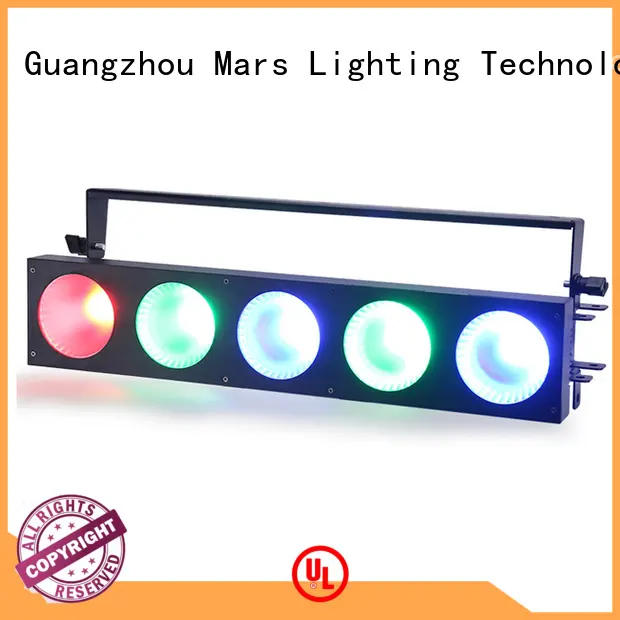

Marslite disco led matrix beam series for KTV
1. Marslite led matrix beam is crafted using quality materials in compliance with industry production norms and guidelines.
2. The product is able to manage well its heat. It has a heat dissipation substrate that effectively acts as an essential role in cooling.
3. This product is durable. The anodized finish, as an integral part of its substrate, provides excellent wear and abrasion resistance with minimal maintenance.
4. People can use this product to help them reduce environmental pollution. It can prevent any leakage of toxic substances to the air and water source.
Product Video
Product Overviews

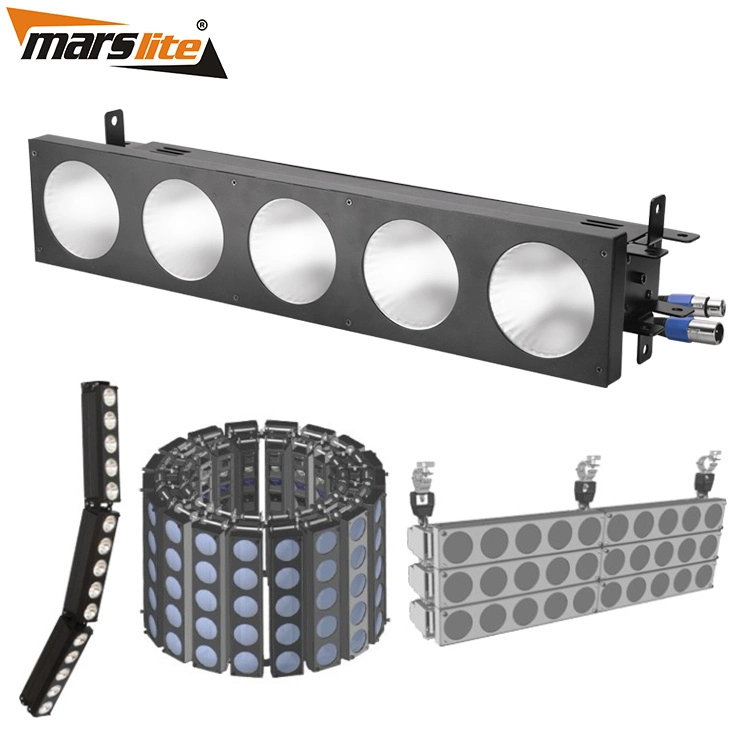

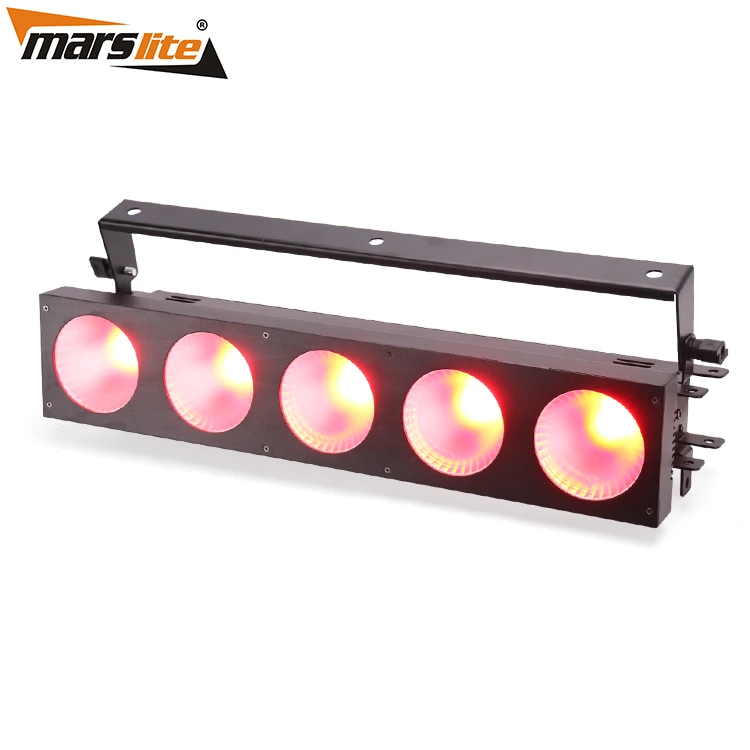

MS-CB150 5pcs 30W RGB 3-in-1 LED
◪The Five head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪Creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects.
◪Also features 0-100% dimming, color macros and built-in shows.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 5pcs 30W RGB 3-in-1 LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 150W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |

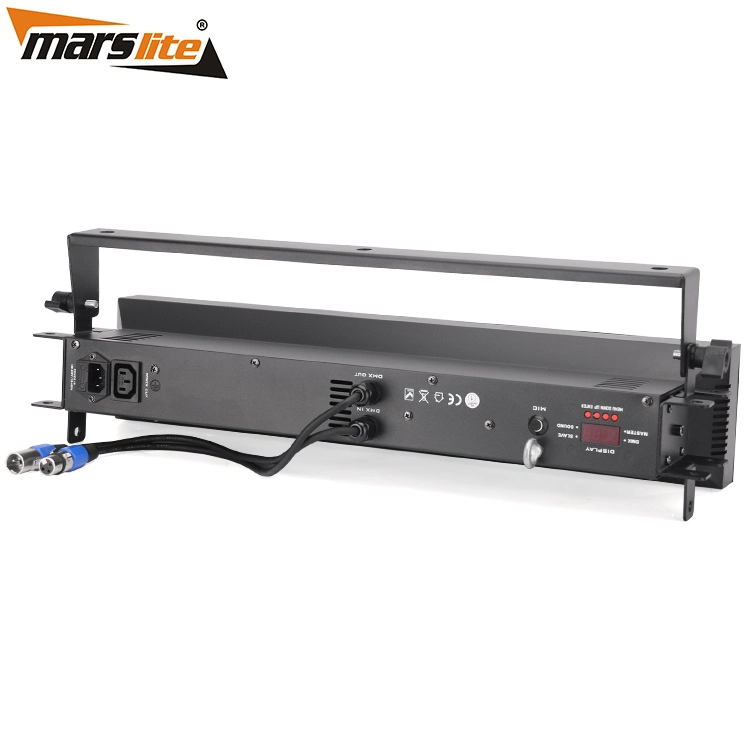

Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 36 degree |
Lens: Fronst lens or Clear lens optional | |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 1365LUX@1m, 361LUX@2m, 60LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 1/3/5/7/15/18CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: Metals, black baking finished |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:62*15*16cm | |
N.W.: 3.5kg | |
G.W.:5.05kg | |
Package Size:68*18*23CM |
Technical Details

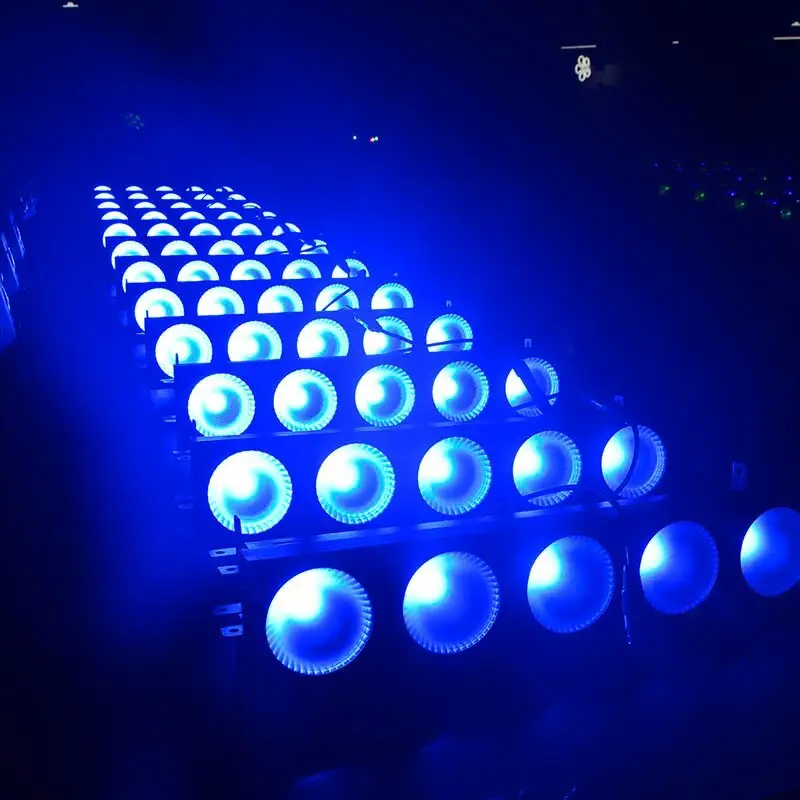

Effect diagram

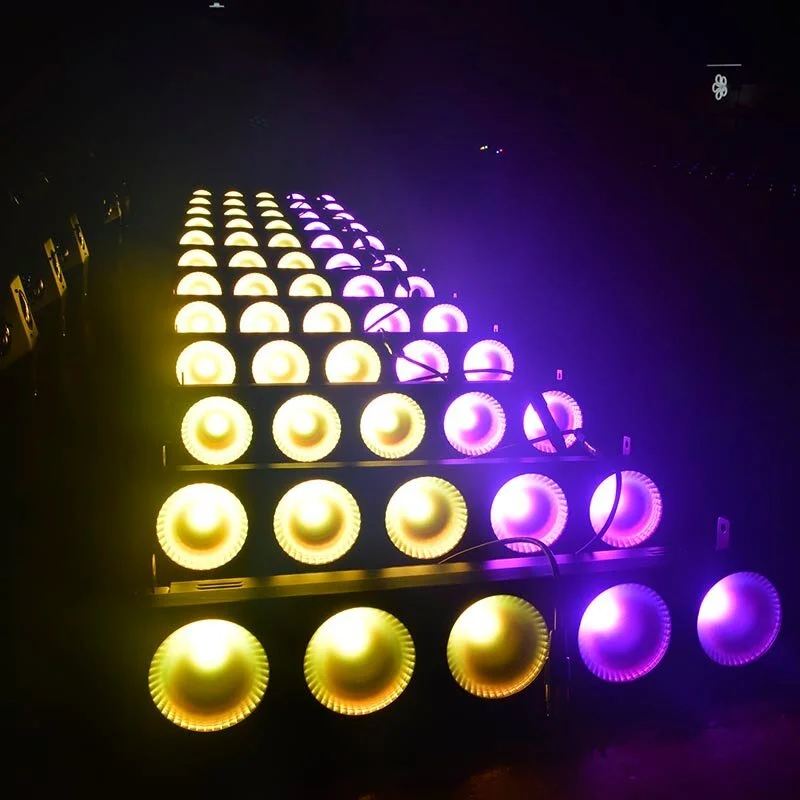

Effect picture - colorful
Different visual effects

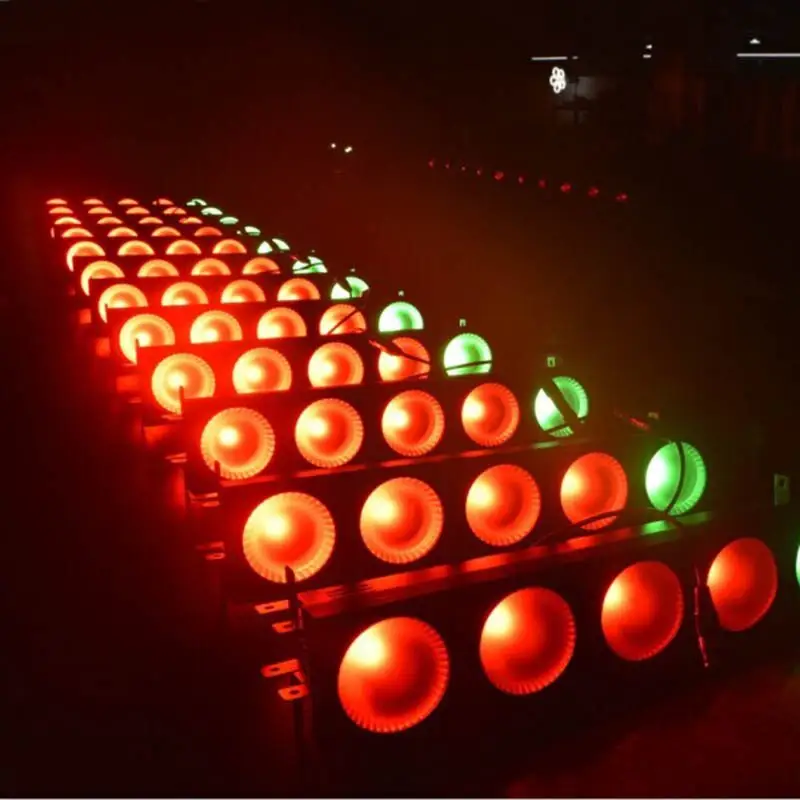

Effect picture - colorful
Different visual effects

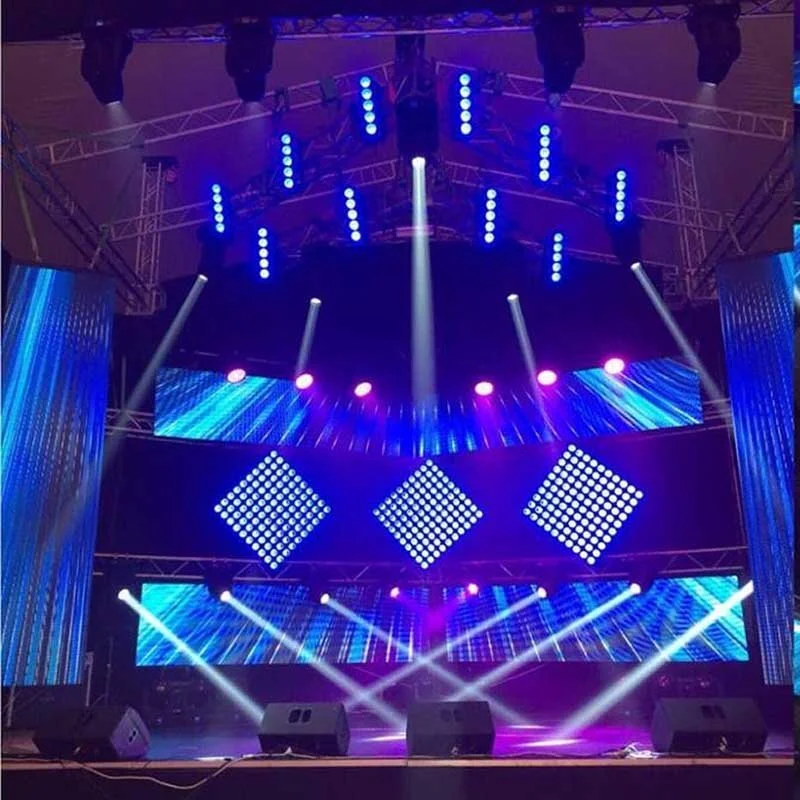

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

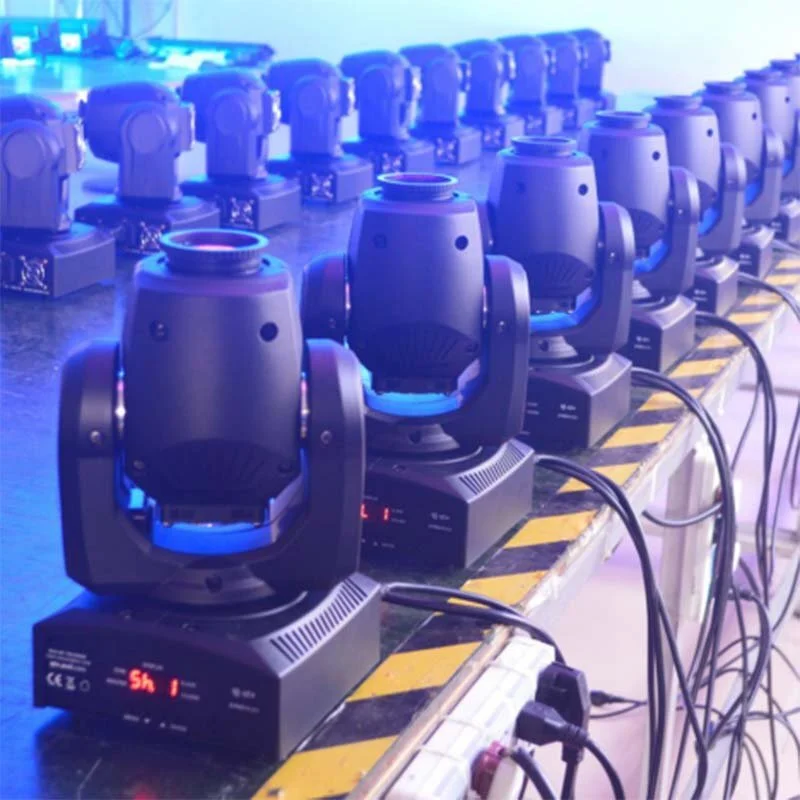

Production line
Packing
