Marslite color big led matrix supplier fro night bar
1. Any color and any size are available for led matrix bar .
2. The product features low energy consumption. Its ingenious circuit design allows minimizing loss of energy due to transient currents during switching.
3. The product is scratch resistant. It will not easily leave any trace caused by fingernails, sharp objects, or steel wire brush.
4. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.
Product Overviews

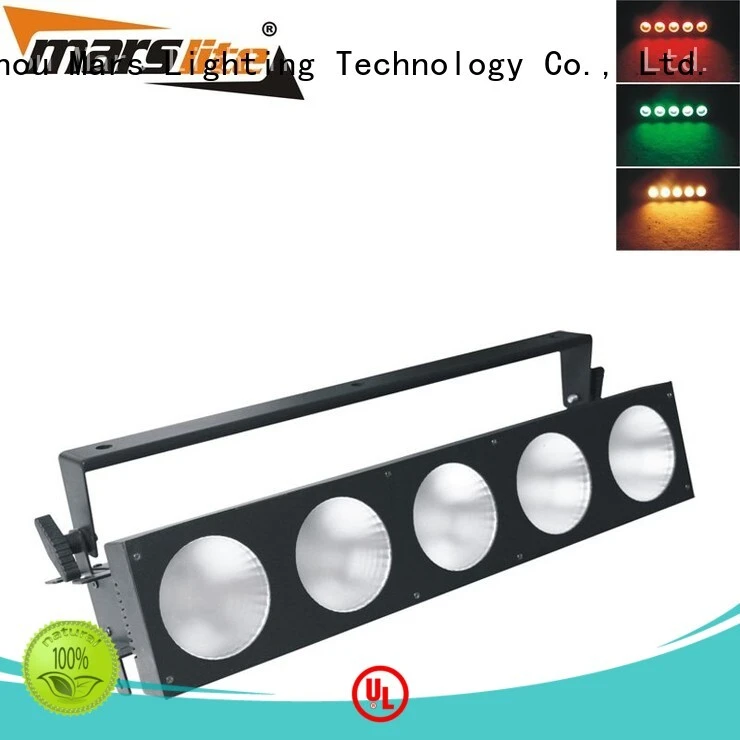

MS-CB50 5pcs 10W COB RGB 3in1 LEDs
◪The Five head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪Creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects.
◪Built-in sound active, Auto, DMX and master/slave, Matrix software mode.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 5pcs 10W COB RGB 3in1 LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max.50W |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>4K Hz) |
Light output(full bright): 630LUX@1m, 159LUX@2m, 26LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave, Matrix software and Sound-active |
DMX channels: 1, 3, 5,7,15, 18CH | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: die-cast aluminium, black baking finished |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:62*15*16cm | |
N.W.: 3.5kg | |
G.W.:4.5kg | |
Package Size:68*18*21CM |

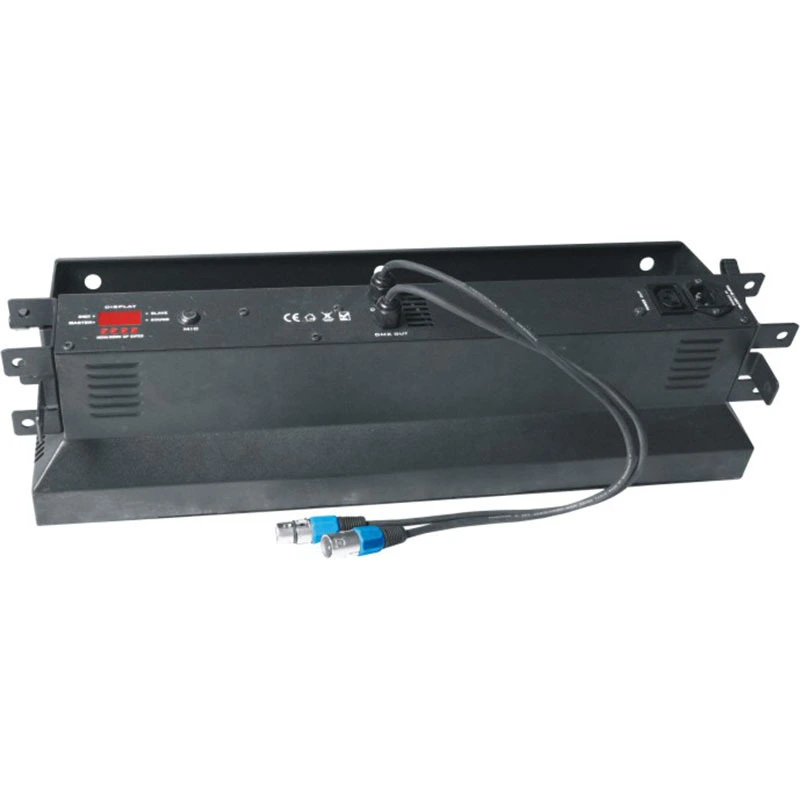

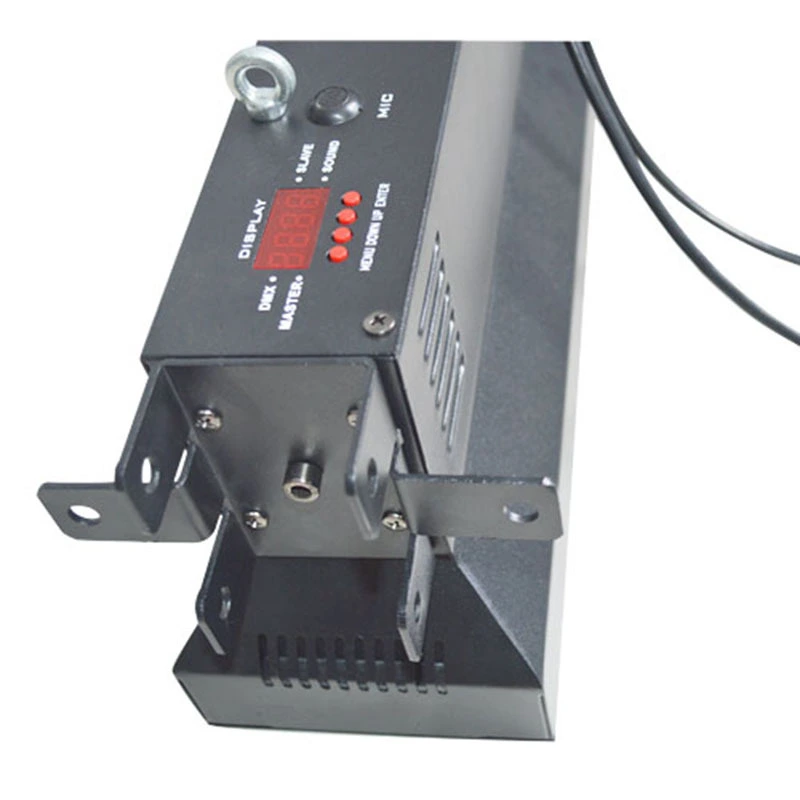

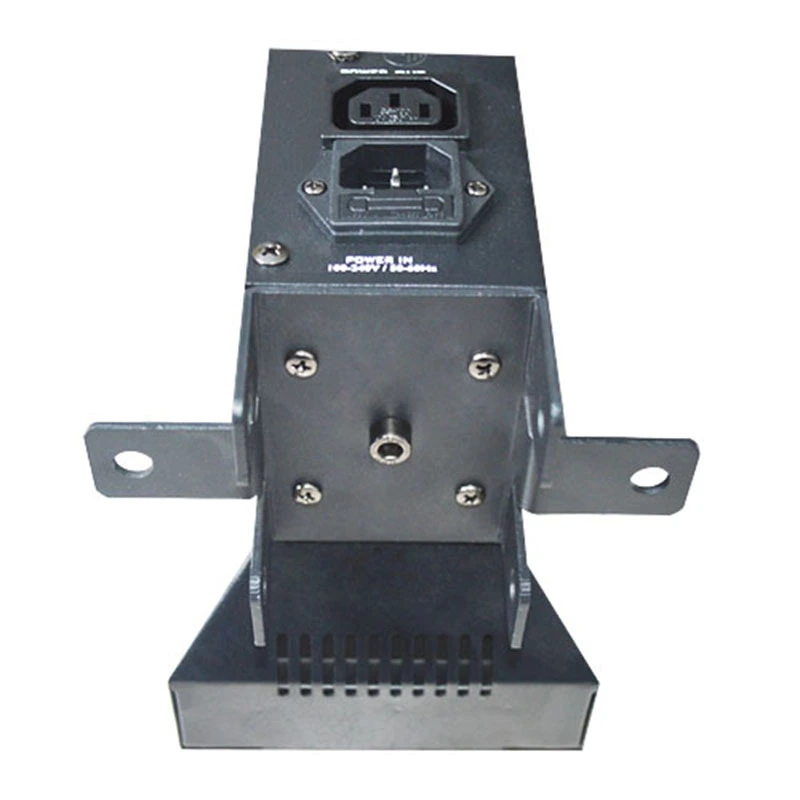

Technical Details
Effect diagram

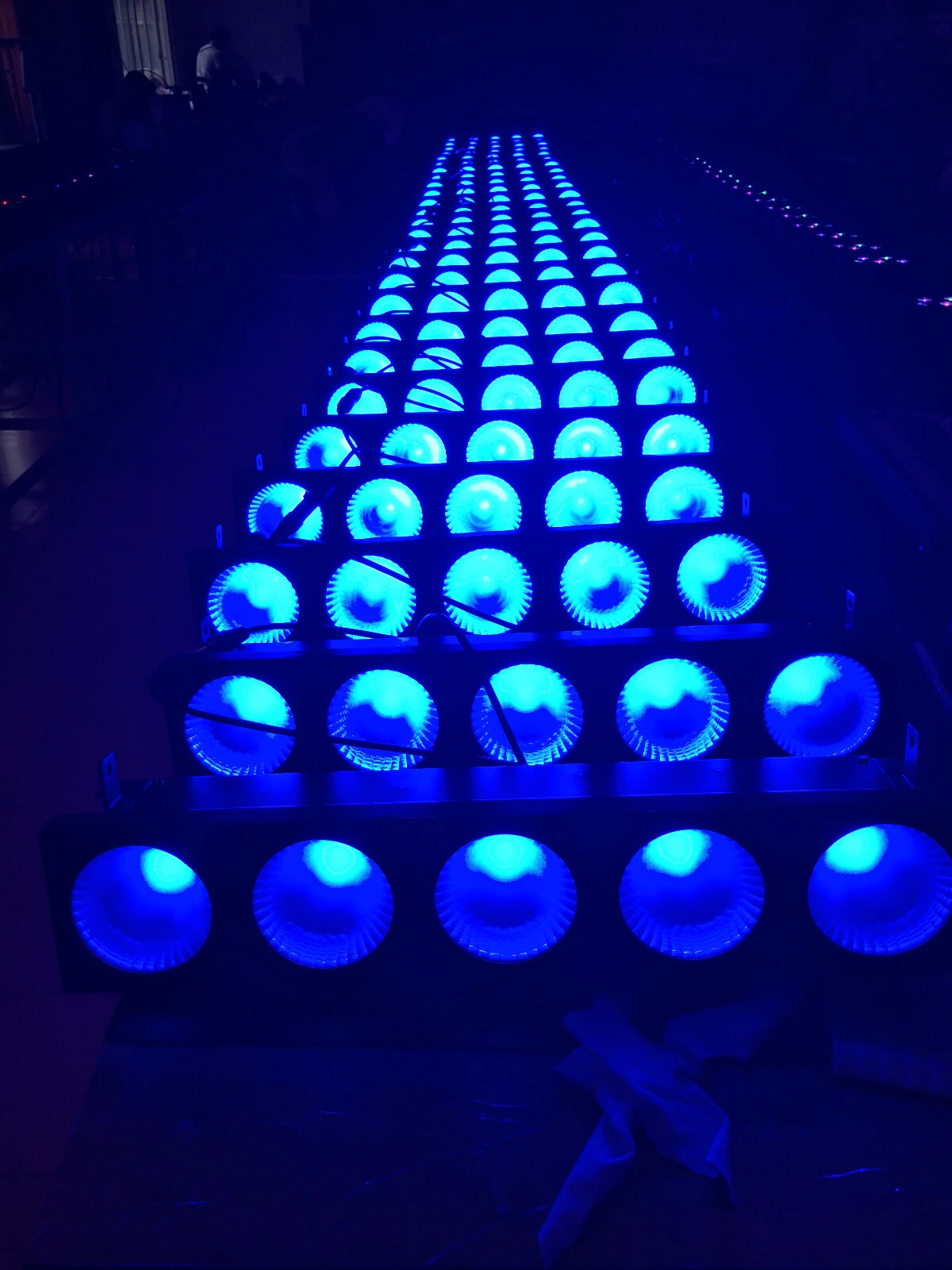

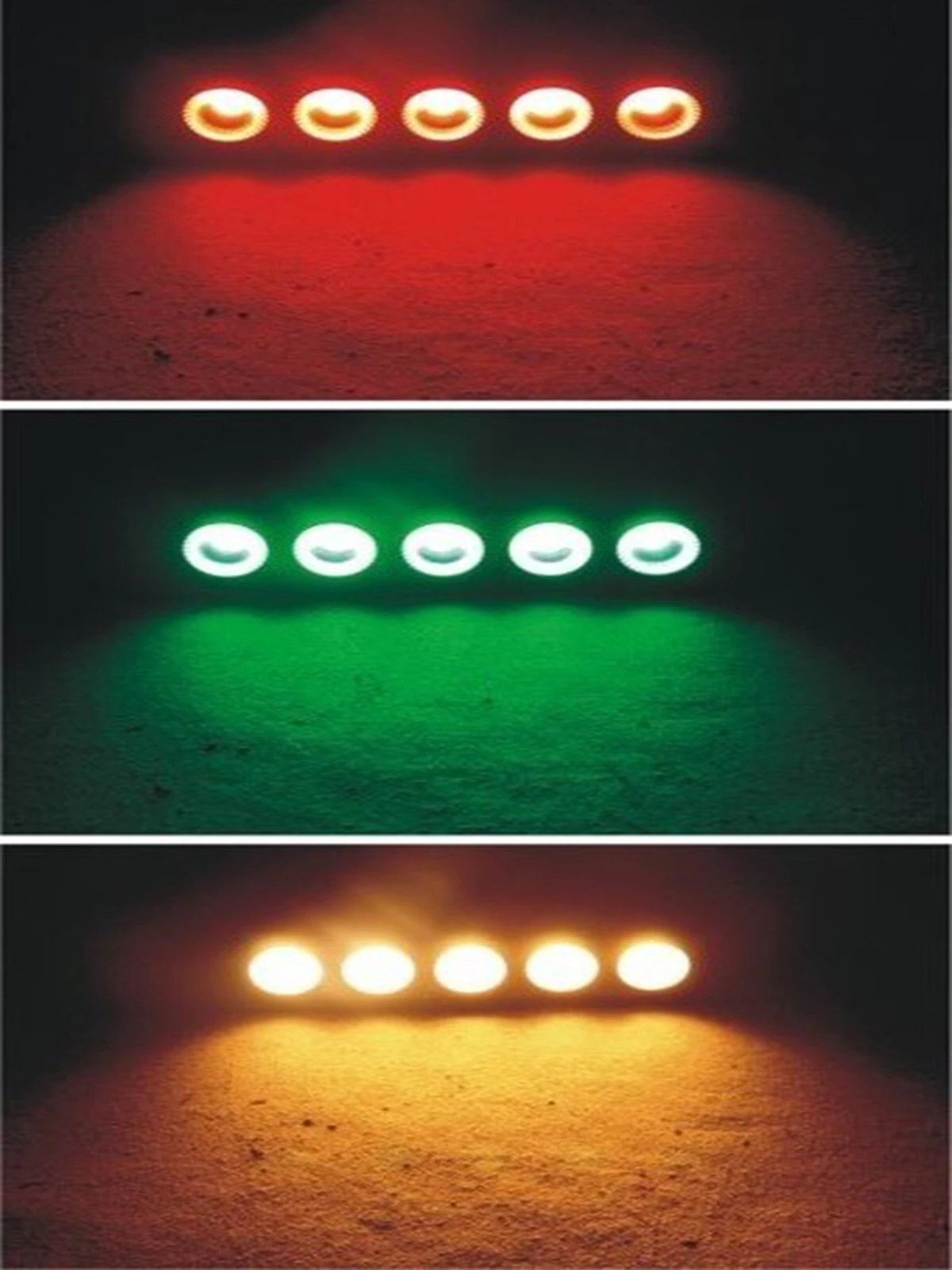

Effect picture - colorful
Different visual effects

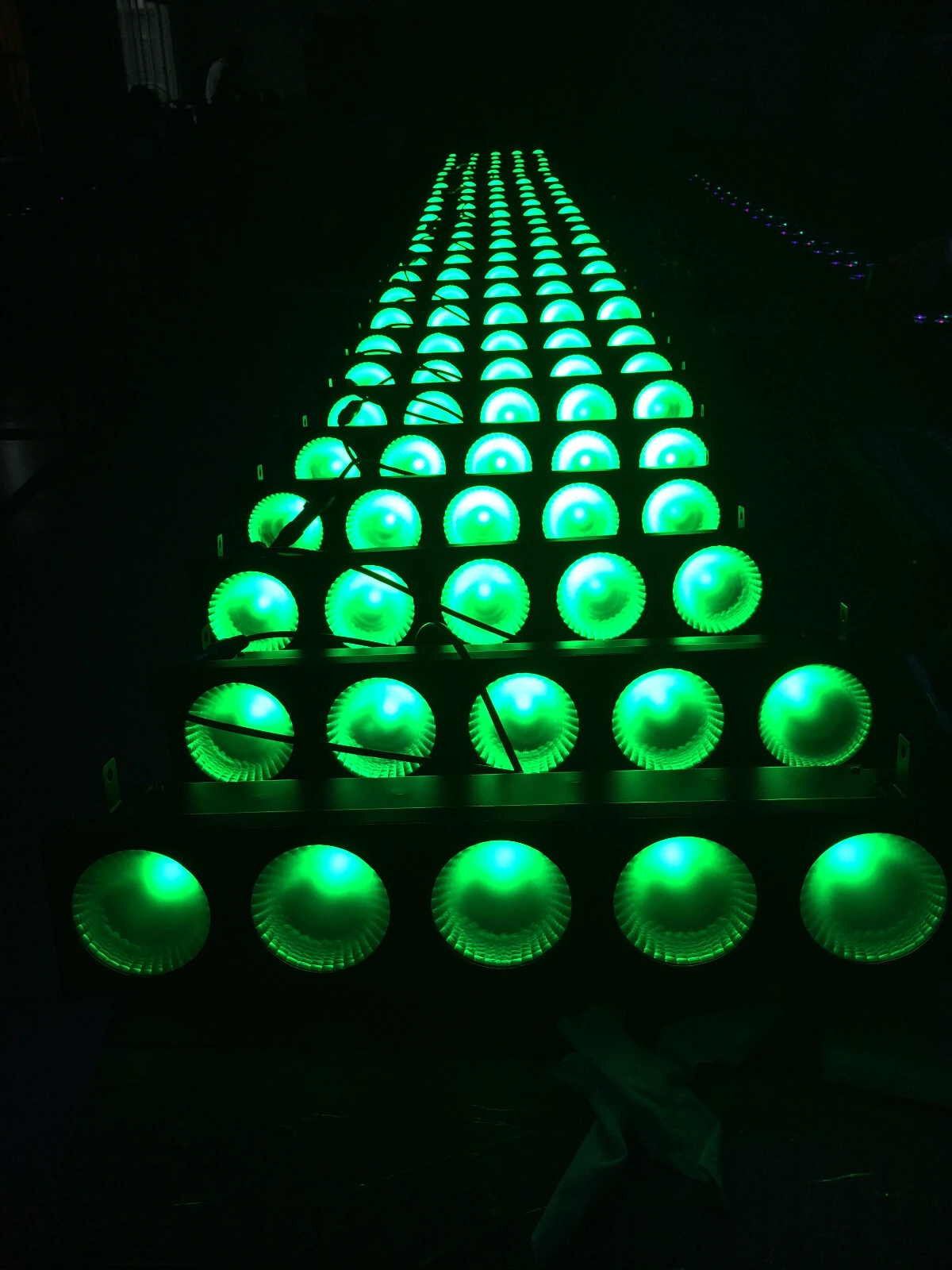

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

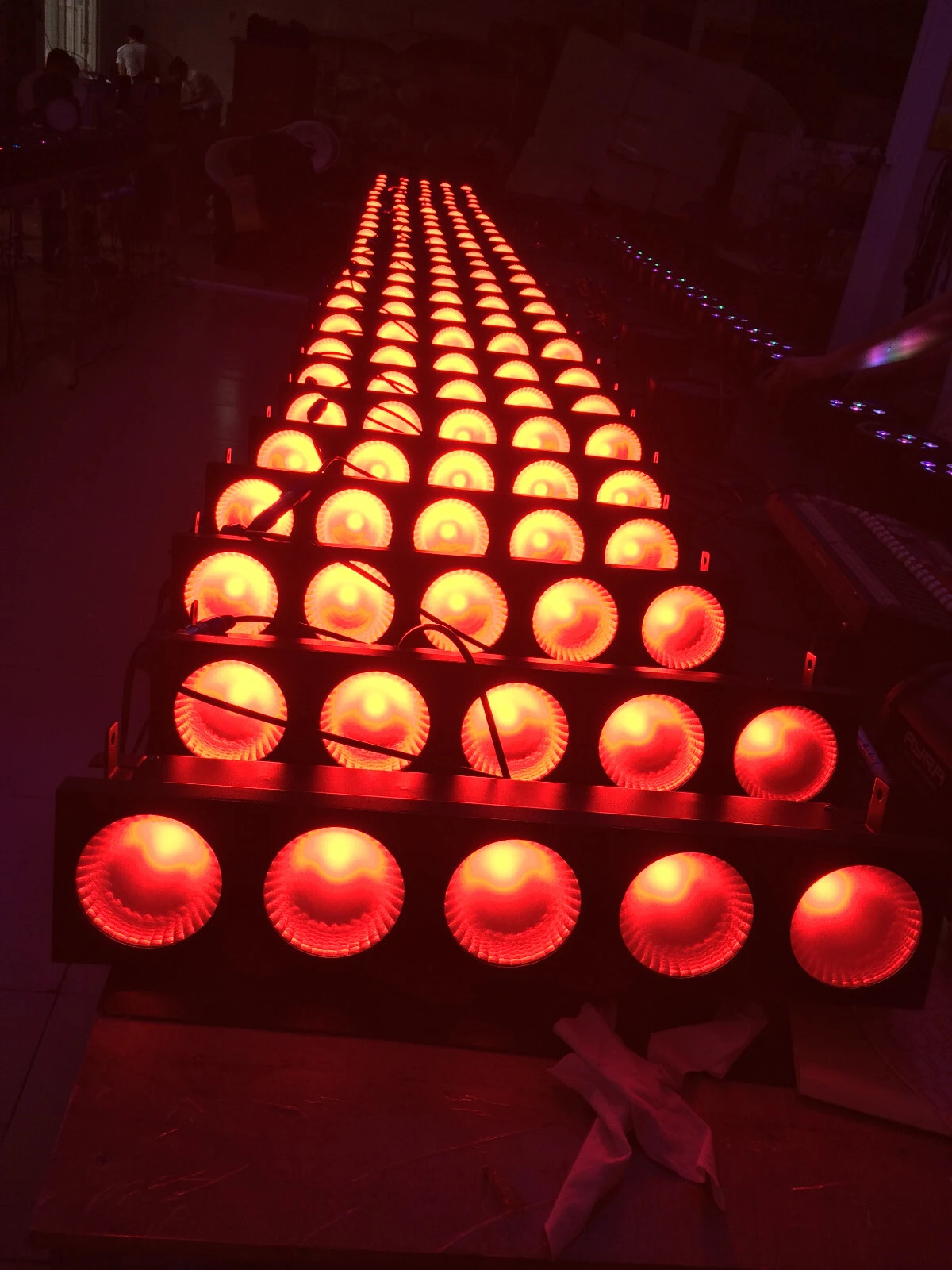

Test chart

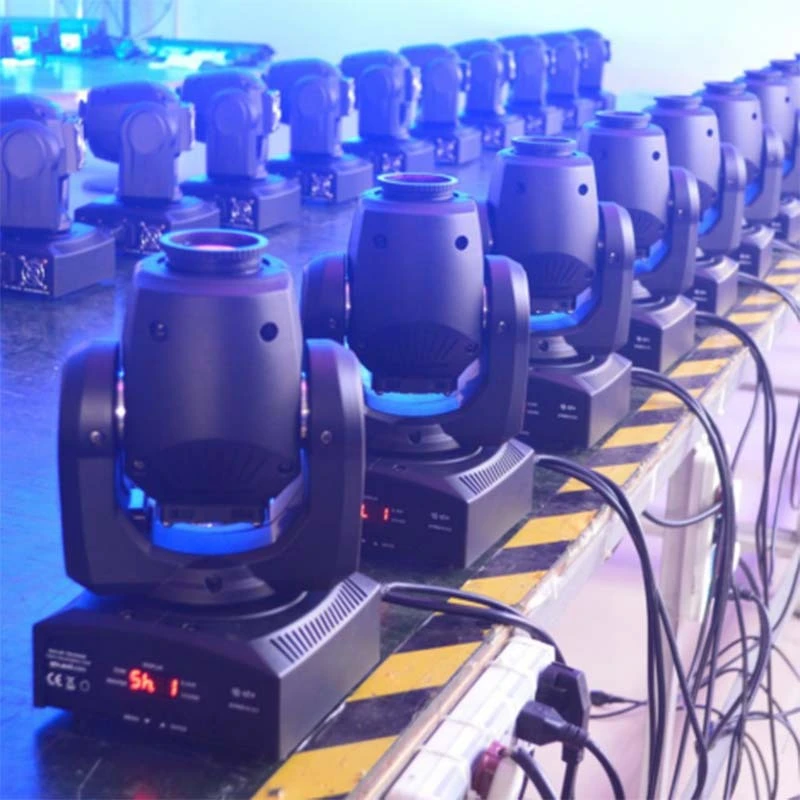

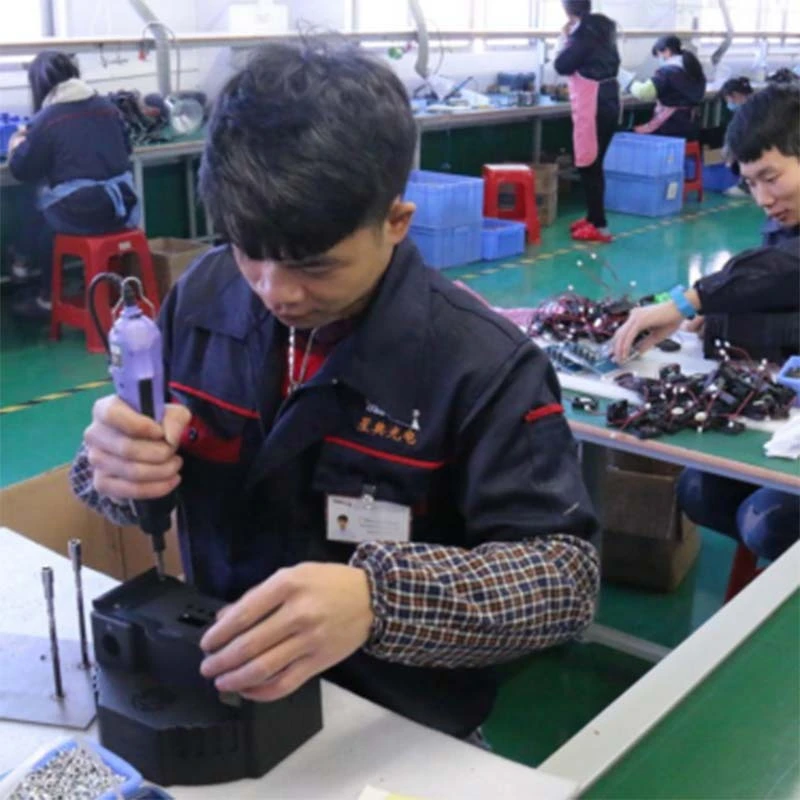

Production line
Packing
