Marslite Brand triangle infinity led moving head light manufacture
1. It is more energy saving. Owing to its various quality attributes, provided moving head dj lights is highly appreciated by Marslite clients.
2. Guangzhou Mars Lighting Technology Co., Ltd.'s customer service always works on a professional level. It has mature product structure and production process
3. led moving head light has some outstanding advantages, such as moving head lights cheap. Our lights can meet the requirements of ROHS
Product Overviews
Product Overviews

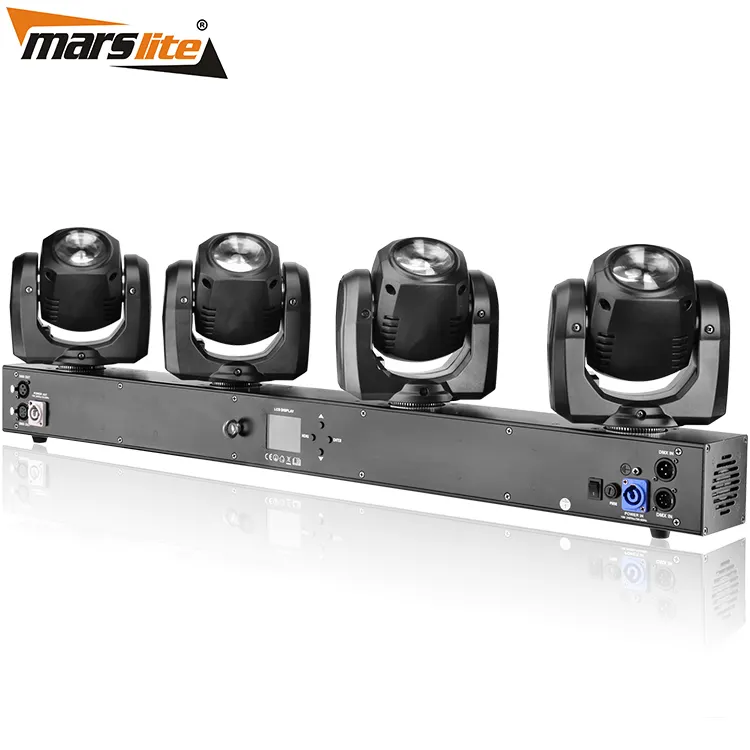

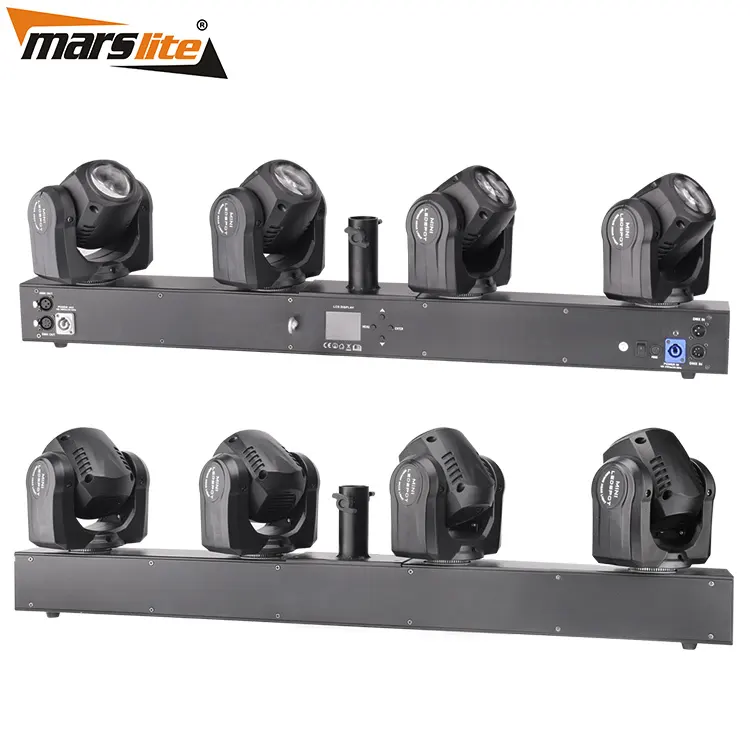

MS-MPS4-32FC 4*32W RGBW LEDs
◪The MARSLITE 4LED Beam Moving Head Light is powered by 4pcs 32W RGBW 4in1 high quality LEDs.
◪beam angle is 8 °, pan 540°and tilt 270 °rotation speed adjustable.
◪4LED Beam Moving Head Light is easy install.
◪sensitive sound control make super beam effect, clients also can control it by DMX512.
◪suit for disco, club, bar, party and DJ moving show,It’s mini led beam moving head light time!
Technical Data
LIGHT SOURCE: | LEDs: 4*32W RGBW leds |
LEDs average lifespan: >100,000hrs | |
Drive mode:Constant Current | |
Drive current(mA): 660 | |
OPTICS: | Beam angle: 6° |
Flicker free(refresh rate>4K Hz) | |
Light output(1mtr)@Red1:24000Lux@Green1:50000Lux@Blue1:80000Lux@White1:68000Lux | |
COLORS: | RGBW color mixing |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING: | Control mode: DMX,Auto run,Master/Slave and Sound-active |
DMX channels: 6CH, 10CH, 19CH, 32CH, 56CH optional | |
Setting and addressing: LCD | |
DMX data In/Out: XLR 3Pin&XLR 5pin, Rj45 | |
PAN-TILT: | Pan: 540° (Speed adjustable) |
Tilt: 230° (Speed adjustable) | |
BODY: | Housing: Metal, plastic |
Housing color: black | |
Housing surface treatment: baking finished | |
POWER SUPPLY: | Power consumption: Max. 200W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with six silent fan | |
Cooling fan speed auto change according to temperature | |
Cooling fans auto start once LED source light up | |
SAFETY DEVICES: | Electronic protection against short circuit |
With safety chain throught holes at the rear | |
Rigging & Assembling | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificates: CE&RoHS | |
Environment temp: -20℃-40℃ | |
Light size: 100×26×9cm | |
N.W.:11kg | |
G.W.:13.5kg | |
Package size:109*36*18cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

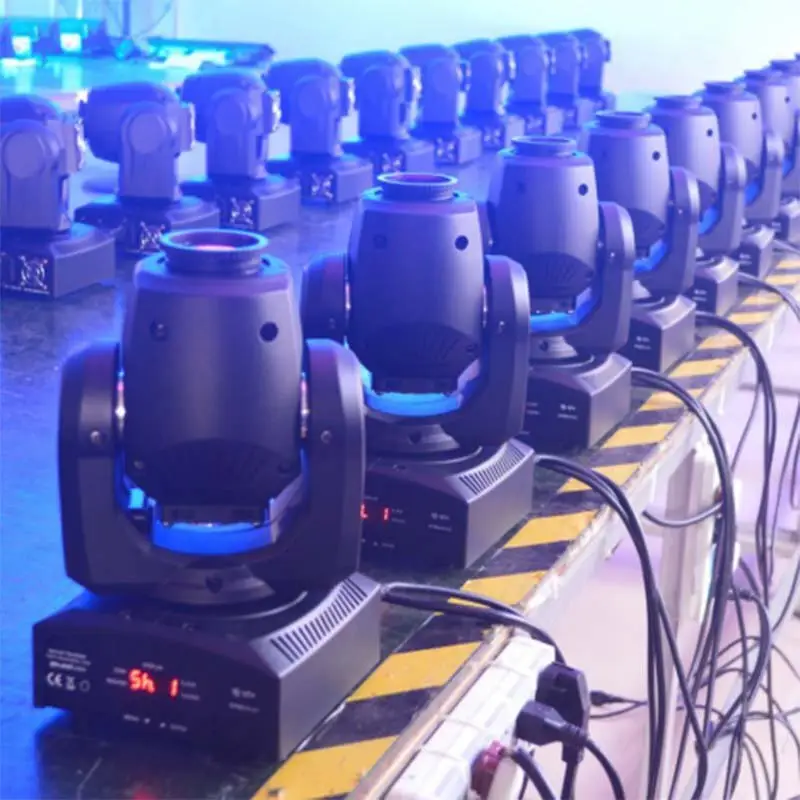

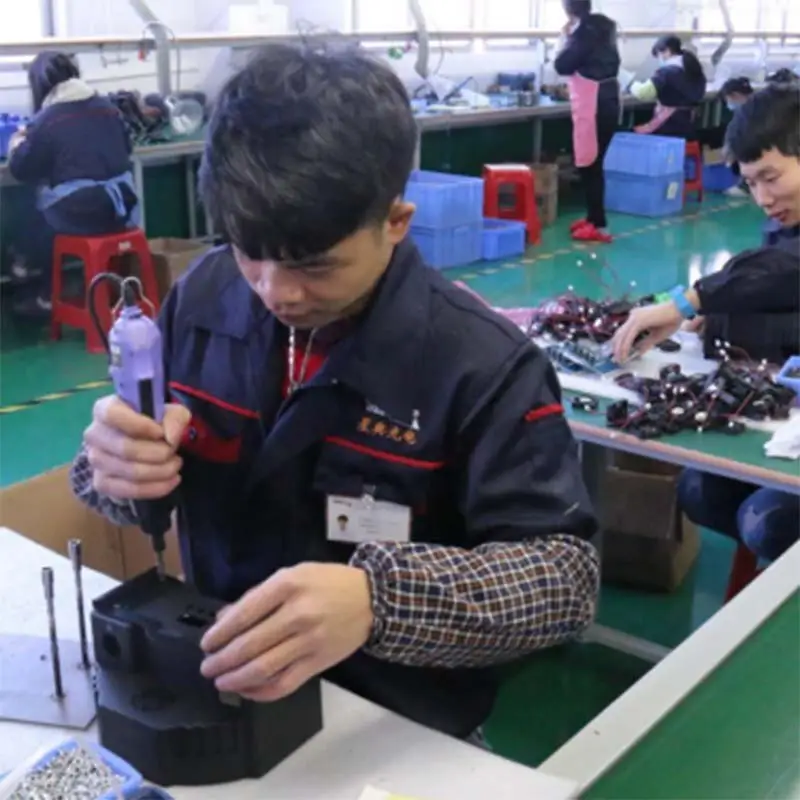

Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Features
1. Marslite specializes in manufacturing led moving head light with high quality and reasonable price. - Adversity Successfully Overcome Is The Highest Glory. Marslite Offers A Wide Range Of moving head, moving head dj lights, moving head lights cheap At Reasonable Price To Customers From All Over The World. Please Contact Us!
2. moving heads is the life of an enterprise which needs the full concentration and meticulous of employees during the work.
3. Guangzhou Mars Lighting Technology Co., Ltd. has solidified and advanced its moving head lights production ability with modern technology. - Marslite focuses on continuous technological innovation to improve products and services. Get info!
