Marslite amazing blind matrix manufacturer series
1. A unique design of blind matrix makes a pleasant addition to it.
2. The actual use shows that blind matrix has good properties such as american dj matrix led panel .
3. Our blind matrix have advantages of high quality and low cost for maintenance.
4. Due to its excellent properties, the product has been widely used.
Product Video
Product Overviews

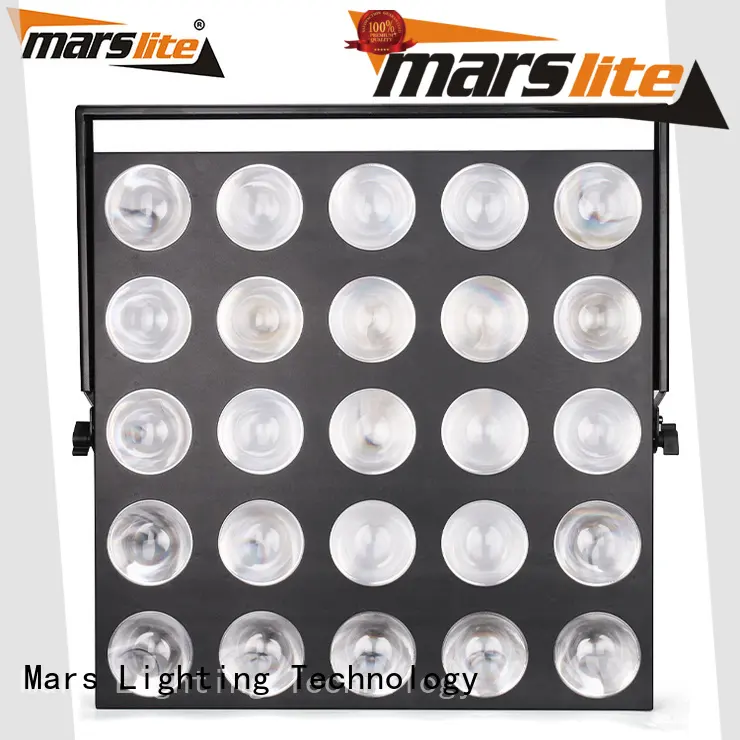

MS-MTX25B 25X10W 4000K Quad color LED
◪The 5X5 head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪Creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects.
◪Also features 0-100% dimming, color macros and built-in shows.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 25X10W RGB color LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 300W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Blue and White powercon, daisy chain | |
OPTICS: | Beam angle: 8° |
Flicker free(refresh rate>4K Hz) | |
CONTROL AND PROGRAMMING: | Control mode: DMX,ArtNet,Master/Slave and Sound-active |
DMX channels: 1CH,3CH,5CH,25CH and 75CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 45pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, color fade | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: Metals, black baking finished |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:58*58*12cm | |
N.W.:13kg |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Company Features
1. Being one of the most renowned manufacturers of american dj matrix led panel , Guangzhou Mars Lighting Technology Co., Ltd. has been playing an important role in designing and manufacturing.
2. Staff working in Guangzhou Mars Lighting Technology Co., Ltd. are all well-trained.
3. Consciously integrating Marslite’s business with national strategy and social progress is the policy that keeps our company active. Please contact us! One important thing for Guangzhou Mars Lighting Technology Co., Ltd. is to provide the most professional customer service. Please contact us! Guangzhou Mars Lighting Technology Co., Ltd. will continuously give full play to R&D and management of blind matrix . Please contact us! Guangzhou Mars Lighting Technology Co., Ltd. will do our utmost to provide the most satisfying service for our customers. Please contact us!
