LED Tricolor 4-Par System Par Light RGB 3IN1 MS-407
Product Video
Product Overviews
MS-407 4*7pcs RGB 3in1 3W LED, total 28pcs 3W LED

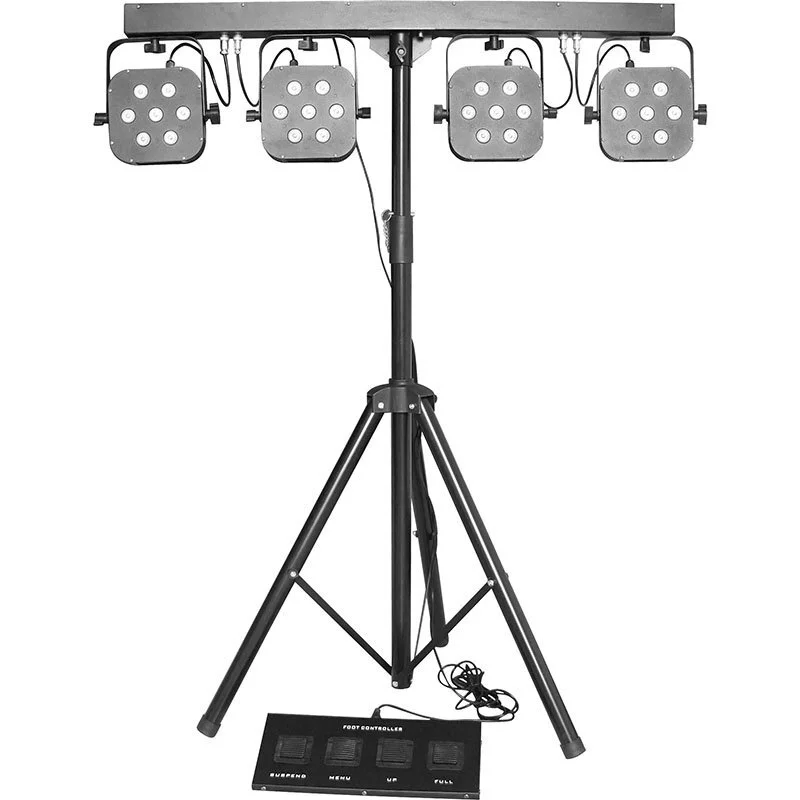

◪MarsLite LED tricolor 4Par system, this fixture features 4set 7x 3-Watt bright, RGB 3in1 color LED, total 28pcs 3W LEDs.
◪With 4 extremely thin LED panels and one powered controller bar, 9 preset colors, 12built-in shows and 1 fade.
◪One set includes 4 par tricolor 3W, 1.8m stand, one bag, and one foot controller.
◪It’s great for stages, nightclubs and mobile entertainers, weddings, etc.
Technical Data
Name: | 4*7pcs RGB 3in1 cob led par can light |
Type: | MS-407 |
LIGHT SOURCE: | LEDs: 4*7pcs RGB 3in1 3W LED,total 28pcs 3W LED |
LEDs average lifespan: >20,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 100W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 1CH, 3CH,7CH,12CH and 16CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
OPTICS: | Light output(full bright): @1mtr:4900Lux @2mtr:1100Lux @5mtr:180Lux |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changeing macro, fade in & out macro | |
BODY: | Housing: Metal, black baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
ENVIRONMENT AND PHYSICAL: | Environment temp: -20℃-40℃ |
Package include 4Par bar, 1.8M stand, one bag, and foot controller | |
Light size:128*50*14cm | |
N.W.:21.5kg | |
G.W.: 16.8KG | |
Package Size:129*53*16cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
