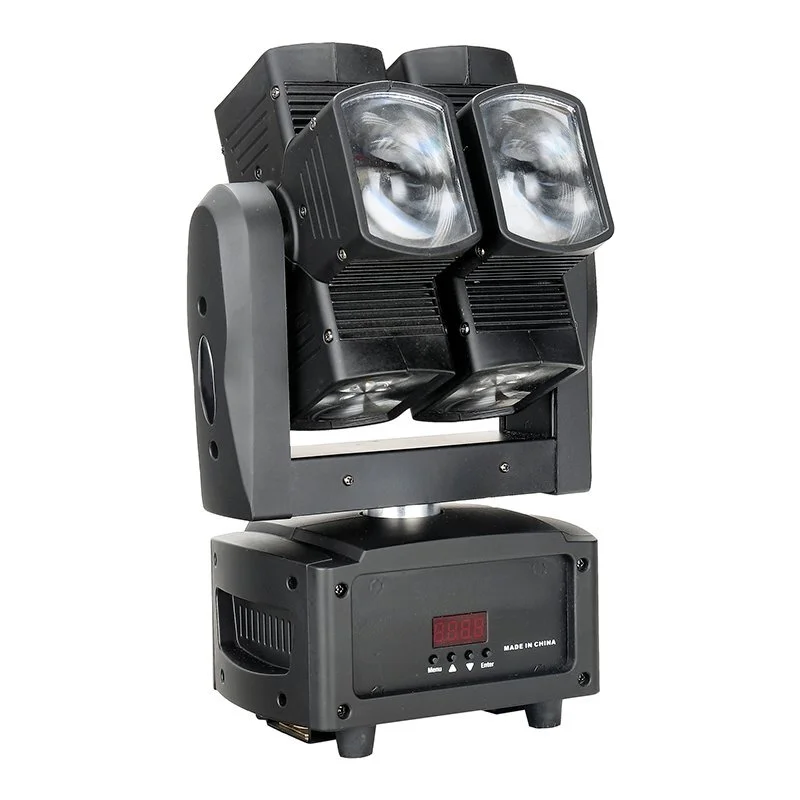

LED Hot Wheel Moving Head Light 8x10w RGBW 4in1 MS-MH810
Product Video
Product Overviews
MS-MH810 8×10W RGBW 4in1 color LED
◪The MARSLITE 8 Eyes LED Moving Head Light is powered by 8pcs 10W RGBW 4in1 high quality LEDs.
◪Vector speed channel for pan/ tilt, RGBW color mixing and color macros.
◪LED Beam Moving Head Light is easy install.
◪Sensitive sound control make super beam effect, clients also can control it by DMX512.
◪Perfect in stage, party, wedding, concert, disco and other events.
Technical Data
LIGHT SOURCE: | LEDs: 8×10W RGBW 4in1 color LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: Constant Current | |
Drive current(mA): / | |
POWER SUPPLY: | Power consumption: Max. 94W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: 3pin socket | |
OPTICS: | Beam angle: 6 degree |
| Flicker free(refresh rate>400 Hz) | |
Light output(full bright): 7470LUX@1m, 1720LUX@2m, 293LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,Auto run,Master/Slave and Sound active |
DMX channels: 10/21 DMX Channels optional | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec | |
Built-in color changeing macro and fade in & out macro | |
PAN-TILT: | Pan: 540° |
Tilt: 270° | |
COLORS: | RGBW 4in1 color mixer |
BODY | Housing: Metals and Plastic, black and white optional |
COOLING & THERMAL MANAGEMENT: | Cooling: forced air convection, with silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP33 |
Certificates: CE&RoHS | |
Environment temp: -20℃-40℃ | |
Light size: 21.5*12.5*33.5cm | |
N.W.:4kg | |
Packing size: 39.5*25.5*23cm |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
