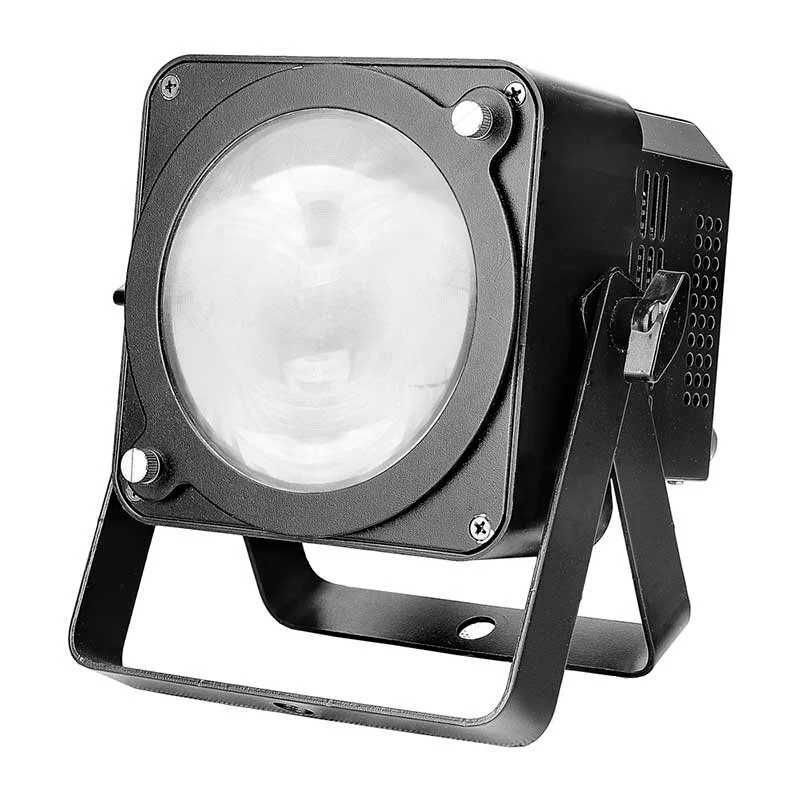

LED Beam Wash COB 30W RGB Par Light MS-CP30
Product Video
Product Overviews
MS-CP30 1pc 30W COB RGB LED
◪Made of high quality materials the COB 30w par light has mixed effect.
◪The lens have 25°or 90°optional which is more convenient.
◪It’s suitable for disco dance hall,club,bar,party,mobile DJ and so on.
Technical Data
LIGHT SOURCE: | LEDs:1pc 30W COB RGB LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA):660mA | |
POWER SUPPLY: | Power consumption:20W |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Beam angle: 25° with fresnel lens, 90° with clear lens |
Light output Lux data of 30° beam angle: 3775Lux@1m,1073@2m,196Lux@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 2CH, 3CH1, 3CH2, 4CH, 6CH | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: die-cast aluminium |
Housing color: black(white optional) | |
Housing surface treatment: baking finished | |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with one silent fan | |
SAFETY DEVICES: | Electronic protection against short circuit |
Wigh safety chain throught holes at teh rear | |
RIGGING & ASSEMBLING | |
Certificate: | CE and RoHs are available |
Warranty: | One year warranty |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Light size:20*20*15cm | |
N.W.:1.5kg | |
G.W.:2kg | |
Package Size:25*23*22CM | |
Packing:Carton box or flight case optional |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
