effect led matrix panel stage for KTV
1. Marslite adj matrix beam has ensured quality. Its design has been tested over time to meet the challenges of the packaging and printing markets.
2. The product quality is fine, has passed the international authentication.
3. With our extensive expertise in this field, the quality of our products is the best.
4. Advanced technology and first-class equipment allow Guangzhou Mars Lighting Technology Co., Ltd. to be confident that we can guarantee prompt delivery and guarantee quality.
5. Satisfying customers needs the effort of each Marslite's staff.
Product Video
Product Overviews

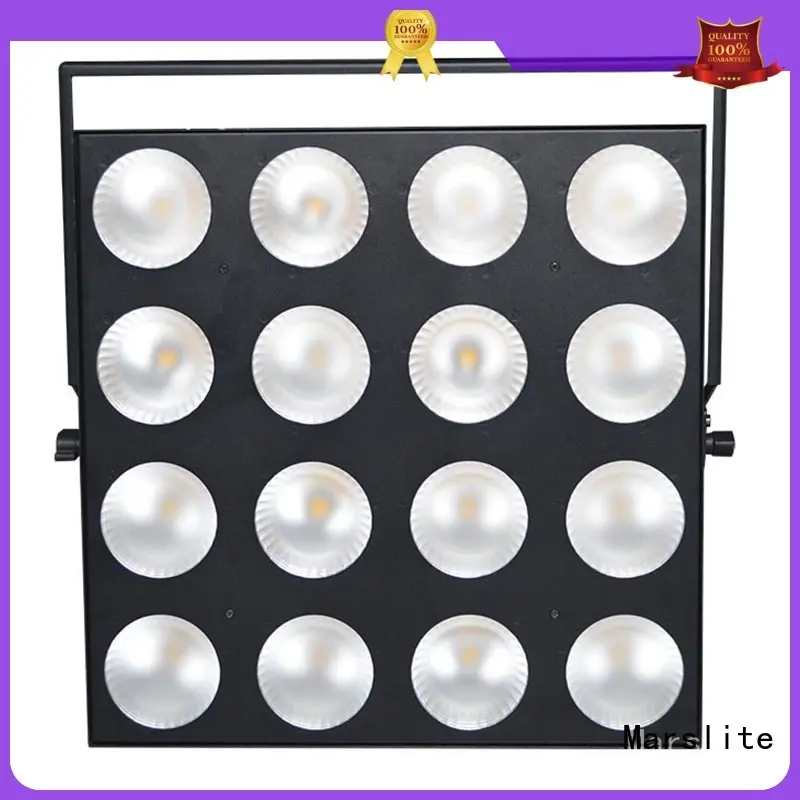

MS-16TS 16pcs 30W COB RGB 3in1 leds
◪The 4X4 head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs.
◪Built-in sound active, ArtNet, DMX and master/slave, foot controller mode.
◪ It’s suitable for disco dance hall,club,bar,party,mobile DJ and so on.
Technical Data
LIGHT SOURCE: | LEDs: 16pcs 30W COB RGB 3in1 leds |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 500W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Blue and White powercon | |
OPTICS: | Beam angle: 31° |
Lens: Fronst lens or Clear lens optional | |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 2310LUX@1m, 566LUX@2m, 96LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,ArtNet,Master/Slave and Sound-active |
DMX channels: 1,3,4,6,16,18,48,49,50,51CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: Aluminium, black backing finished |
COOLING : | Cooling: forced air convection, with four silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:47.5*47.5*13.5cm | |
| N.W.:11kg | |
| G.W.:13kg | |
Package Size:57*57*19CM |

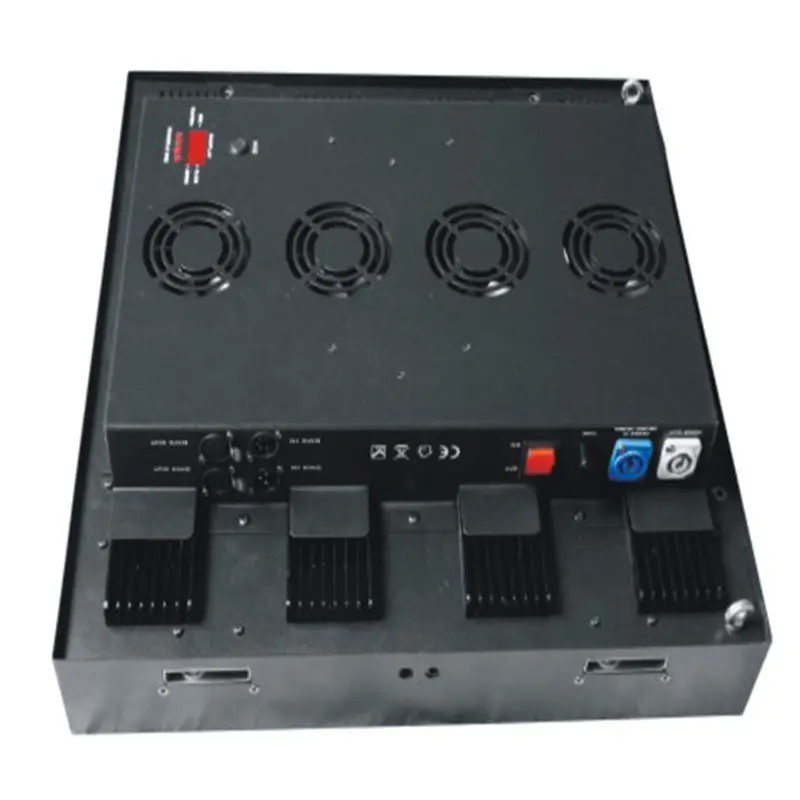

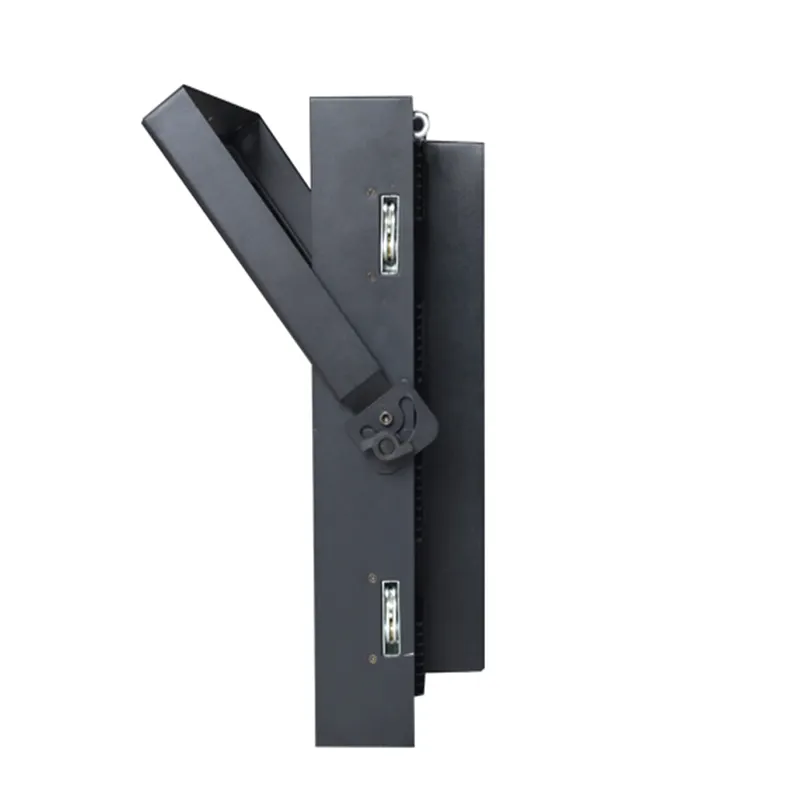

Technical Details
Effect diagram

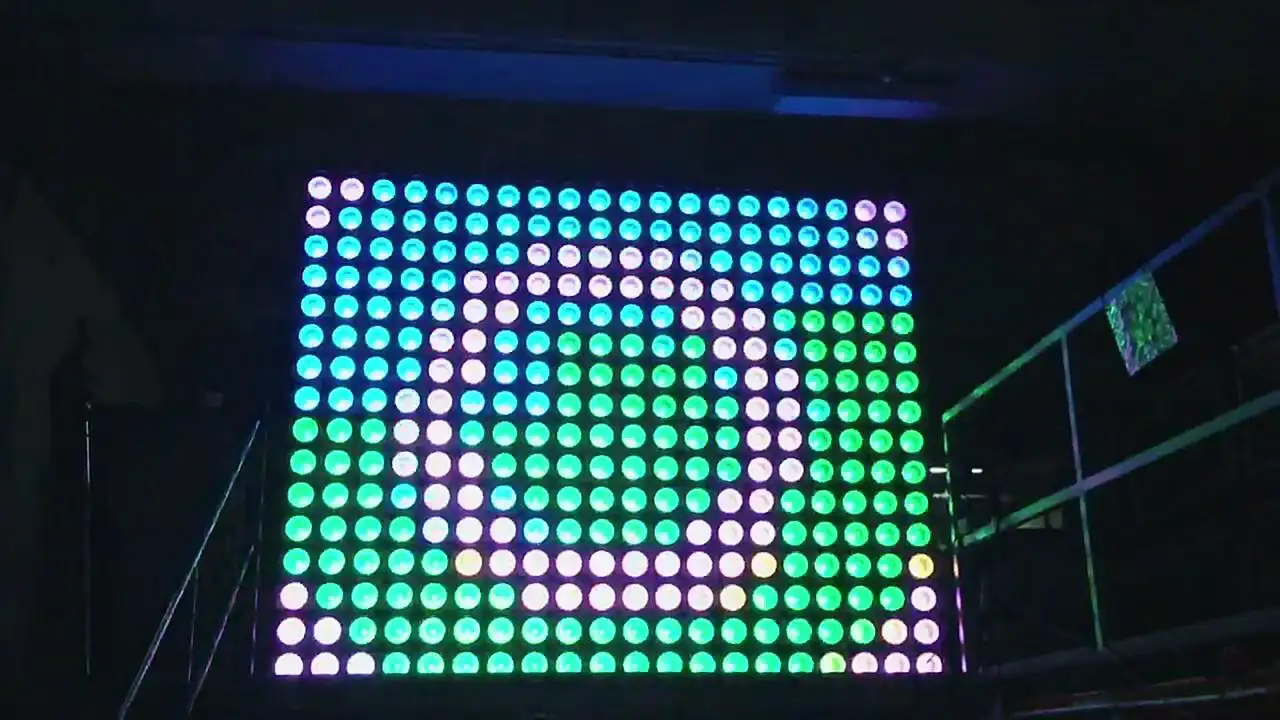

Effect picture - colorful
Different visual effects

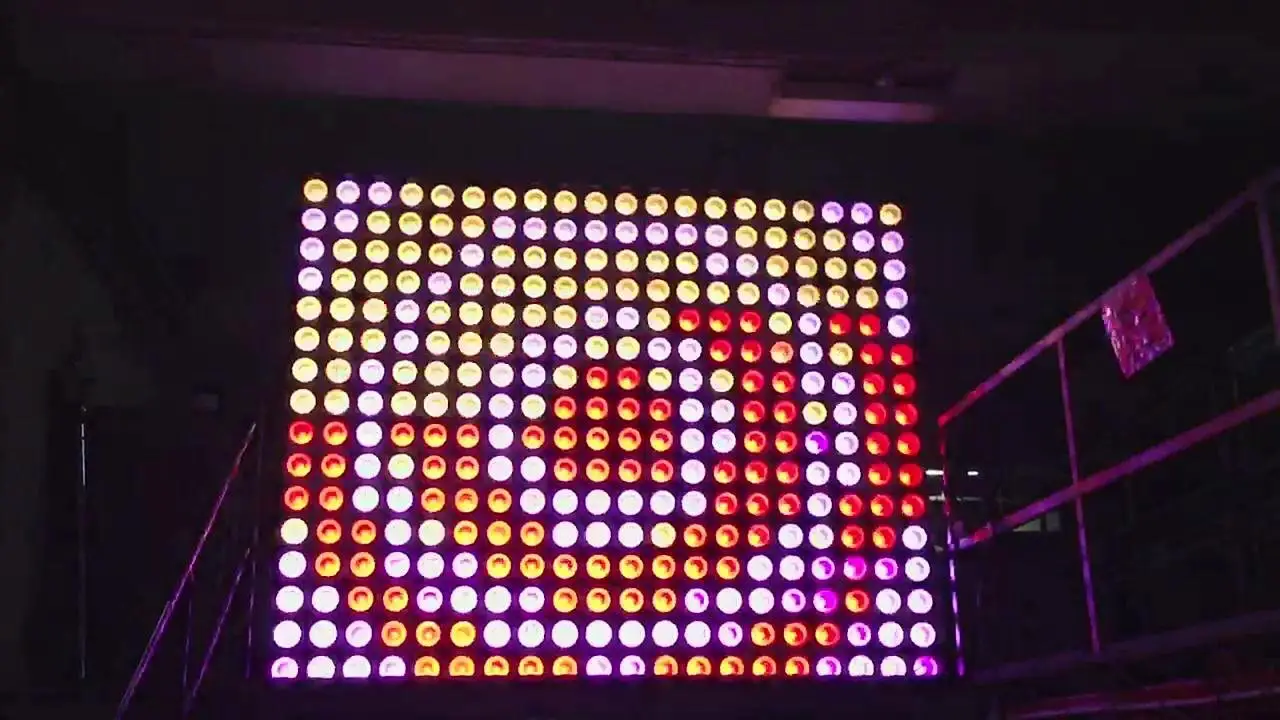

Effect picture - colorful
Different visual effects

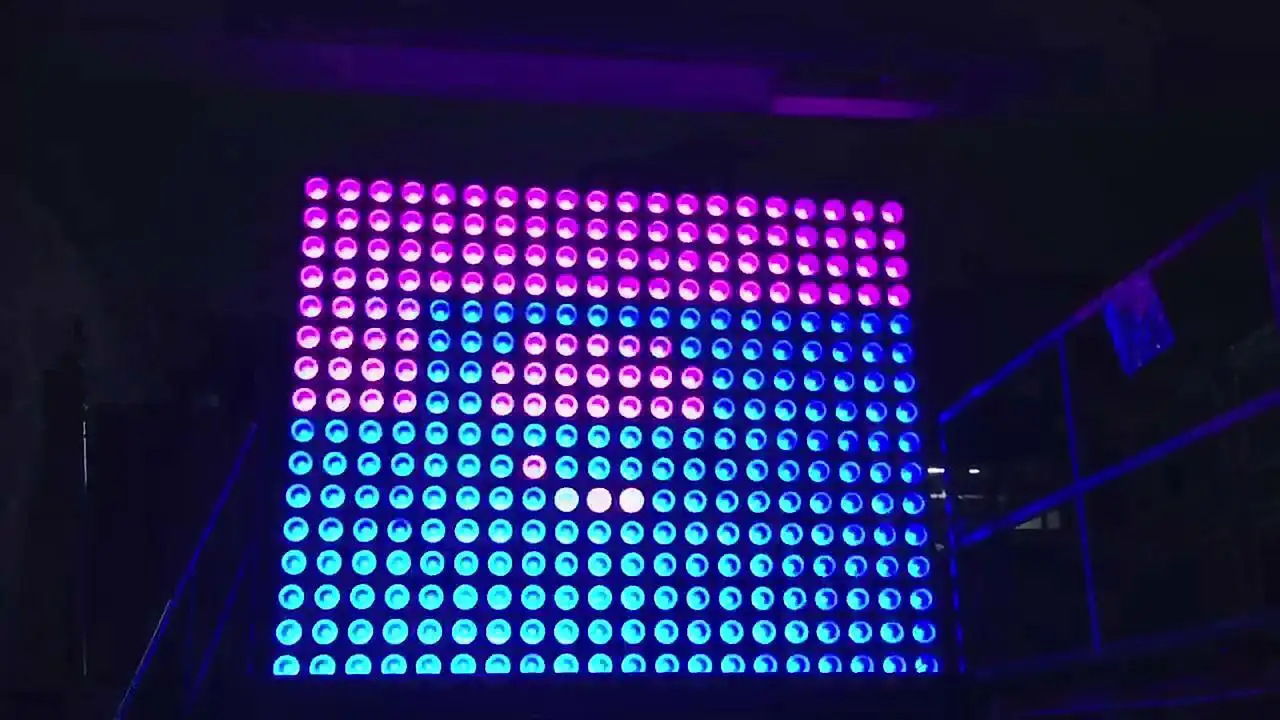

Effect picture - colorful
Different visual effects

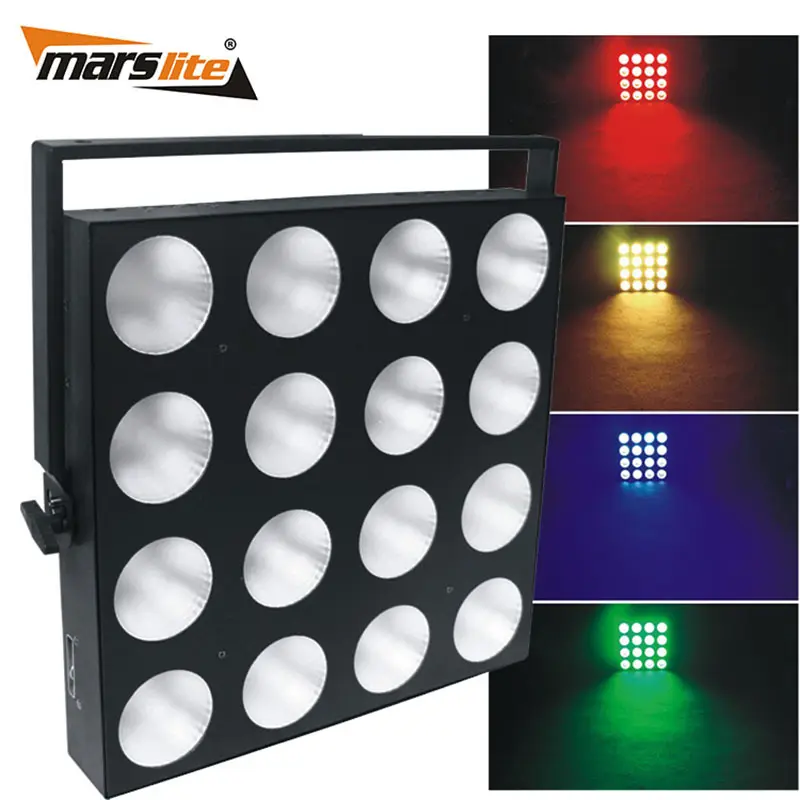

Effect picture - colorful
Different visual effects

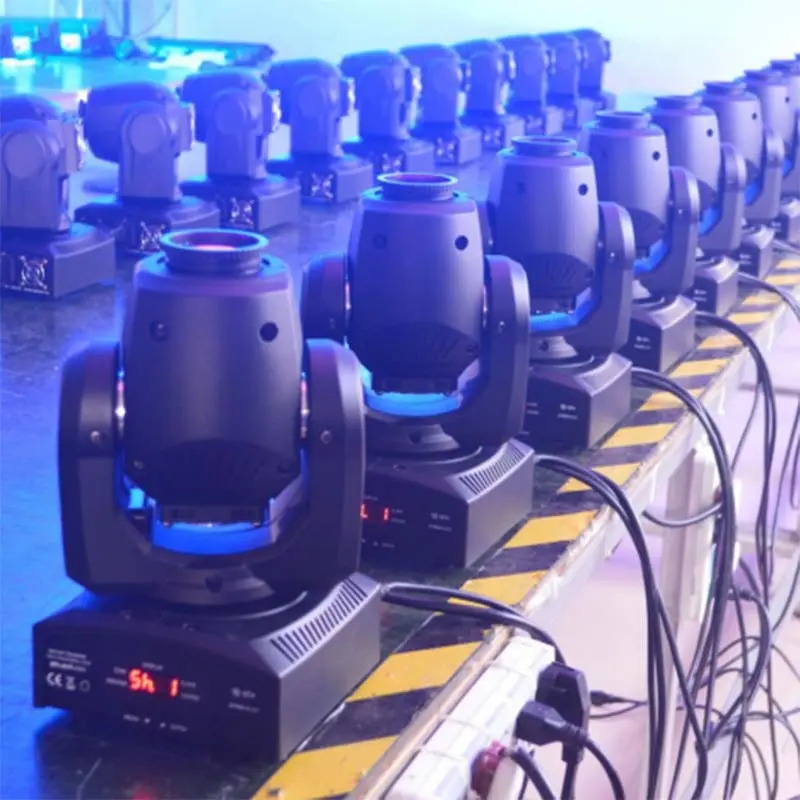

Production line
Packing
