600W Led Cutting Light CTO Cmy Moving Head Stage Lights for Church Concert Disco Sharpy Light Moving Head Led Profile Light
Product Overviews

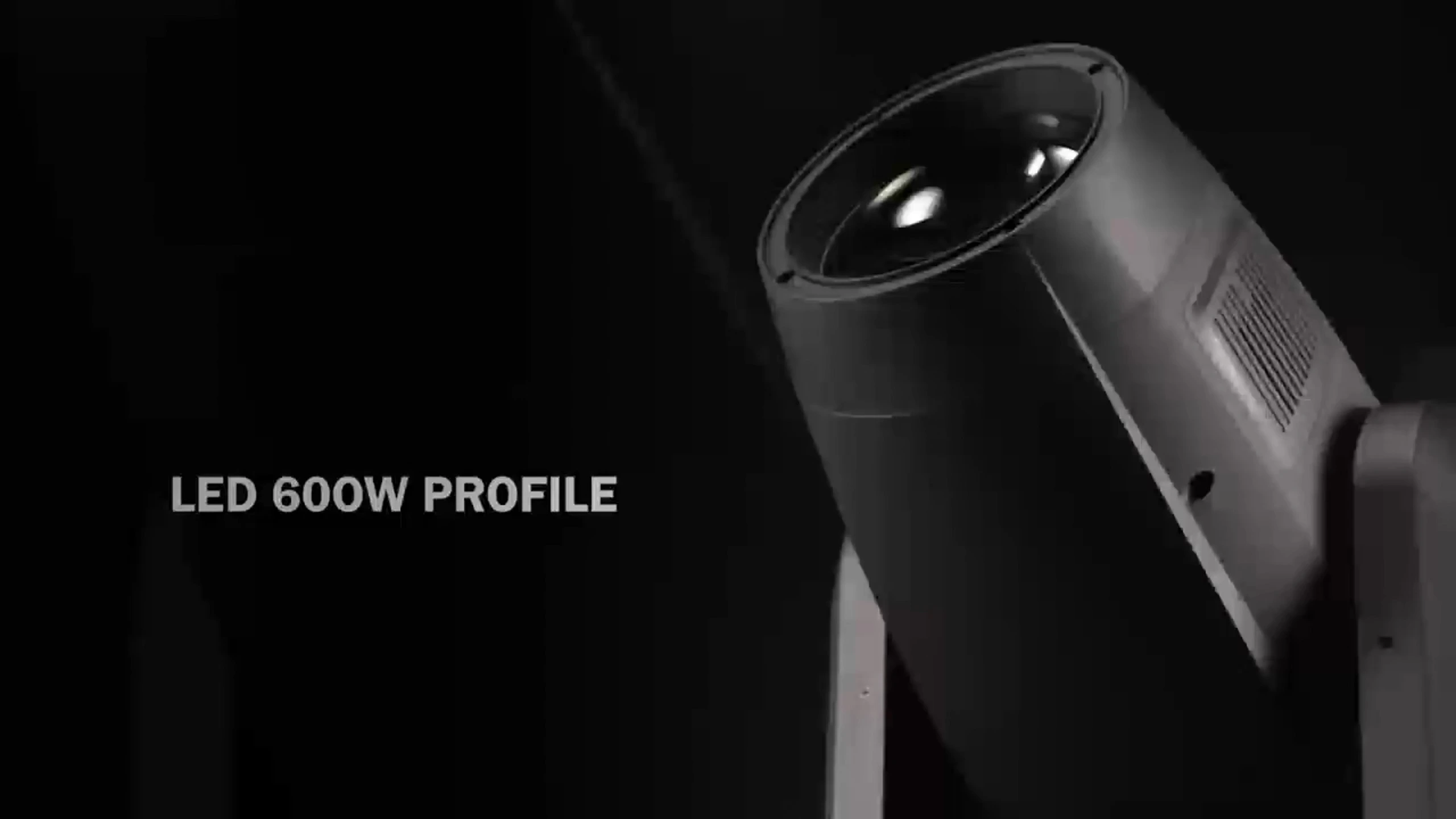

MS-F600 LED 600W Profile Moving Head Light
-
◪
1 set of fout-side cutting system,90°rotation
-
◪1 channel modes: 37CH international standard DMX 512 channel control modes
-
◪
The casing is made of high-temperature resistant, flame-retardant plastic.
-
◪5 types Controlled by:
DMX512,RDM,Master/Slave synchronous control mode,self-walking mode,single scene mode
Technical Data
| AC power: | 100-240V AC 50/60Hz |
| Rated power: | 800W@220V |
| Lamp: | 600W LED |
| Rated life: | 20000h |
| Beam angle: | 3°-40° |
| CRI: | 70,remotely selectable filter for CRI 90 |
| Angle of rotation: | Horizontal scanning 540°/Vertical scanning 270° |
| Shutter: | 0-25HZ |
| Colour: | 1 Colot Plate(5 colors+White light);CMY;CTO |
| Pattem: | 1 fixed pattem disk(6 pattems+1 flowing water pattem+white light)/7-totating pattem |
| Prism: | 3-prism+Single four row prism |
| Dimming: | 0-100% linear adjustment |
| Frost: | Independent atomization |
| Focus: | DMX linear adjustment |
| Cutting: | 1 set of fout-side cutting system,90°rotation |
| Control and Programming: | DMX512,RDM,Master/Slave synchronous control mode,self-walking mode,single scene mode |
| Channel: | 37CH |
| Protection rating: | IP20 |
| Housing: | High temperature resistant flame retardant plastics |
| AC power in/thru: | Seetronic Powercon |
| DMX data in/out: | 3&5-pin locking XLR |
| Weight: | 25KG |
| ambient temperature: | -20℃-40℃ |
| Lamp size: | 387x272x683mm |
| Standard arrangement: | Power cord 1PCS,safety rope 1PCS,DMX signal cable 1PCS,integrated folding light hook 1PCS |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effectsbg
Production line
Packing
Product Introduction
1.1 set of fout-side cutting system,90°rotation
2.The casing is made of high-temperature resistant, flame-retardant plastic.
This MS-F600 LED 600W Profile Moving Head Light is suitable for stage,dj,concert,wedding etc.
Our advantage
-
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
-
Custom service：Our products can be OEM, to meet your special requirements.
-
Company strength
-
---We have rich experience R&D engineer and we have strong ability for OEM projects.
-
---We have wee-trained and professional sales&after- sale services
-
---ISO9001 certification enterprise.Chinese famous brand for many years.
-
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
