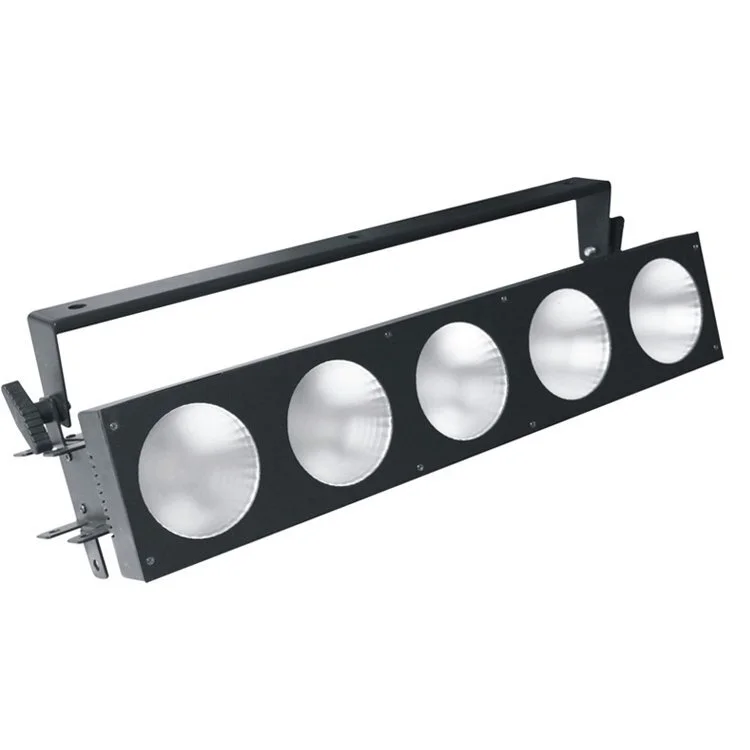

10W Warm White LED Matrix Blinder Light MS-WW50
Product Overviews
MS-WW50 5pcs 10W Warm White LED
◪MarsLite LED Matrix Light Series, 5pcs 10W Warm White LED Matrix Blinder.
◪LED can be controlled pixel by pixel, delivering versatile effects.
◪Built in DMX512, Master/slave, Sound active, Auto and Matrix software mode.
◪LED display, easy to control.
Technical Data
LIGHT SOURCE: | LEDs:5pcs 10W Warm White LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current:667 | |
POWER SUPPLY: | Power consumption:50W |
| Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
OPTICS: | Flicker free(>10k Hz) |
Light output(full bright): 1540LUX@1m, 500LUX@2m, 85LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,Auto,Master/Slave, Matrix software and Sound-active |
DMX channels: 1CH, 2CH, 5CH, 7CH optional | |
| Setting and addressing: 4 digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in&out macro | |
BODY: | Housing: Metal, black baking finished |
COOLING: | Cooling: forced air convection, with one fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
| Certificate:CE,RoHs | |
Environment temp: -20℃-40℃ | |
Light size:62*15*16cm | |
N.W.:3.5kg |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Test chart
Production line
Packing
