10W Cool White LED Matrix Light MS-CW50
1. The materials or components used in Marslite american dj matrix beam are strictly selected by QC team. The selected materials or components have to be tested under professional devices or machines to check their reliability.
2. The product does not accumulate heat. It is embedded with a heat dissipation system which effectively expels the heat from the inner parts.
3. The product is highly resistant to pressure. It is made of composite metal materials such as stainless steel and aluminum alloy which feature excellent hardness and anti-impact resistance.
4. Guangzhou Mars Lighting Technology Co., Ltd. has the most advanced patented technology and strong R&D capabilities for rgb led panel light in the world today.
Product Overviews

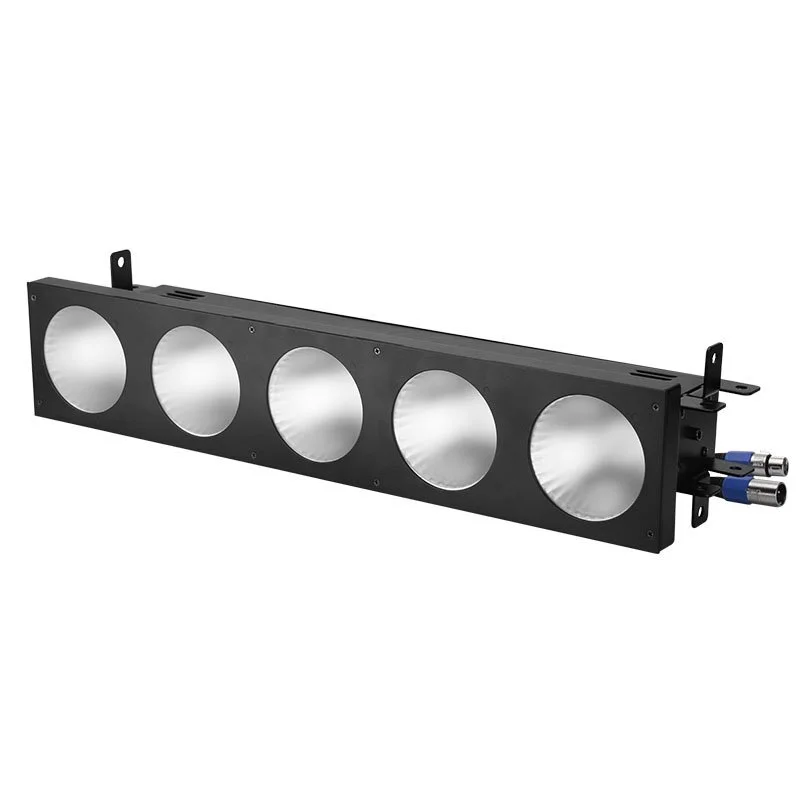

MS-CW50 5pcs 10W cool white LEDs

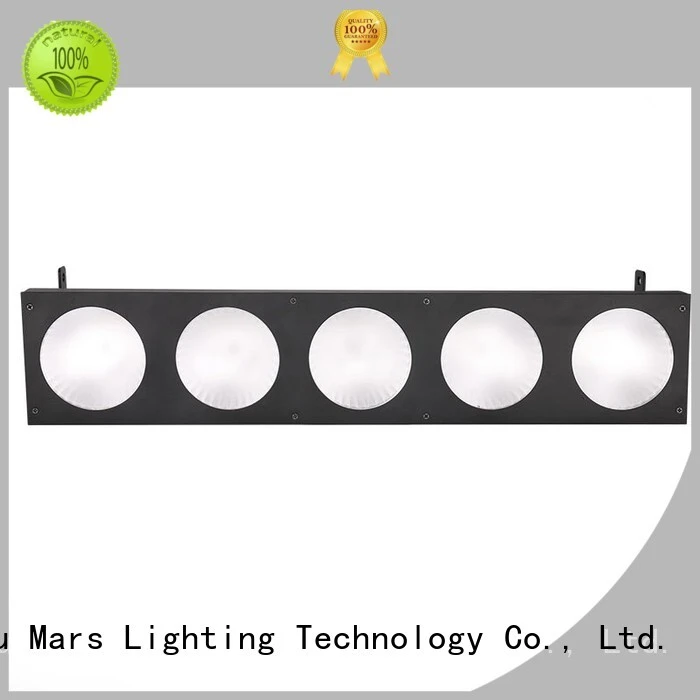

◪MarsLite LED Matrix Light Series, 5pcs 10W Cool White LED Matrix Bar.
◪Get ready to create the a rich display of cool white color at your next event.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs:5pcs 10W cool white LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA):667 | |
POWER SUPPLY: | Power consumption:50W |
| Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |

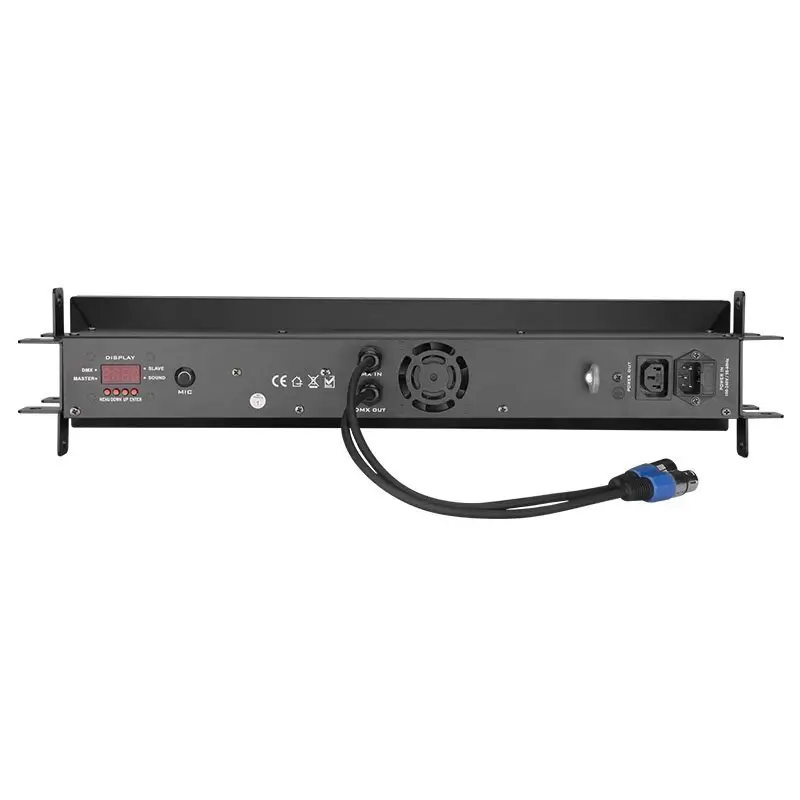

Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 80° (fog lens and clear lens selectable) |
Flicker free(refresh rate>4K Hz) | |
CONTROL AND PROGRAMMING: | Control mode: DMX512, Auto, Master/Slave, Matrix software and Sound-active |
DMX channels: 1CH, 2CH, 5CH, 7CH | |
| Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro | |
Built-in color fade in & out macro | |
BODY: | Housing: Paint aluminium |
COOLING: | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Light size:62*15*16cm | |
N.W.:3.5kg | |
Packing:Carton box or flight case optional |
Technical Details

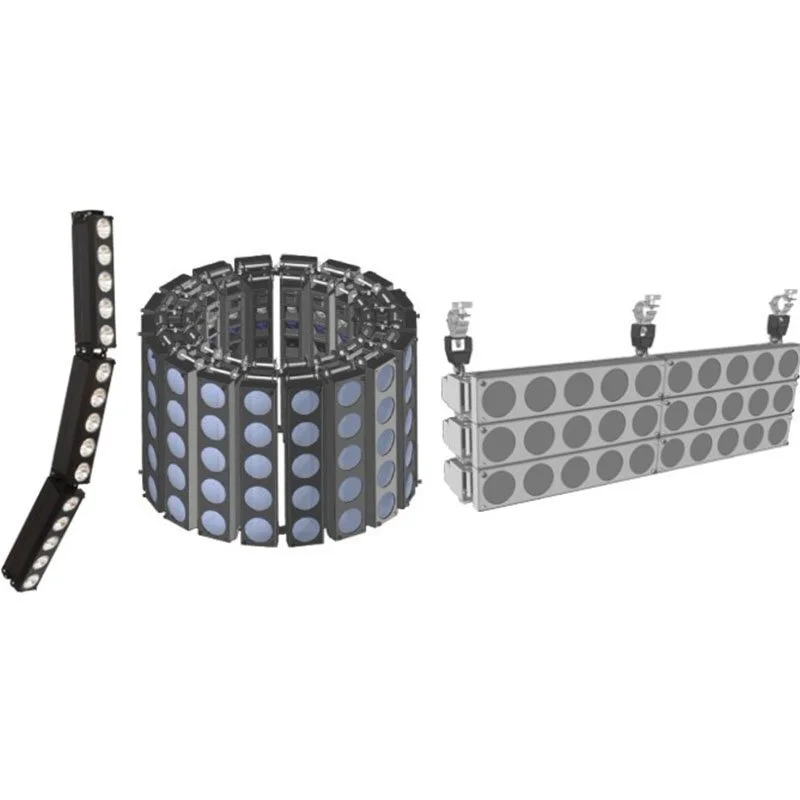

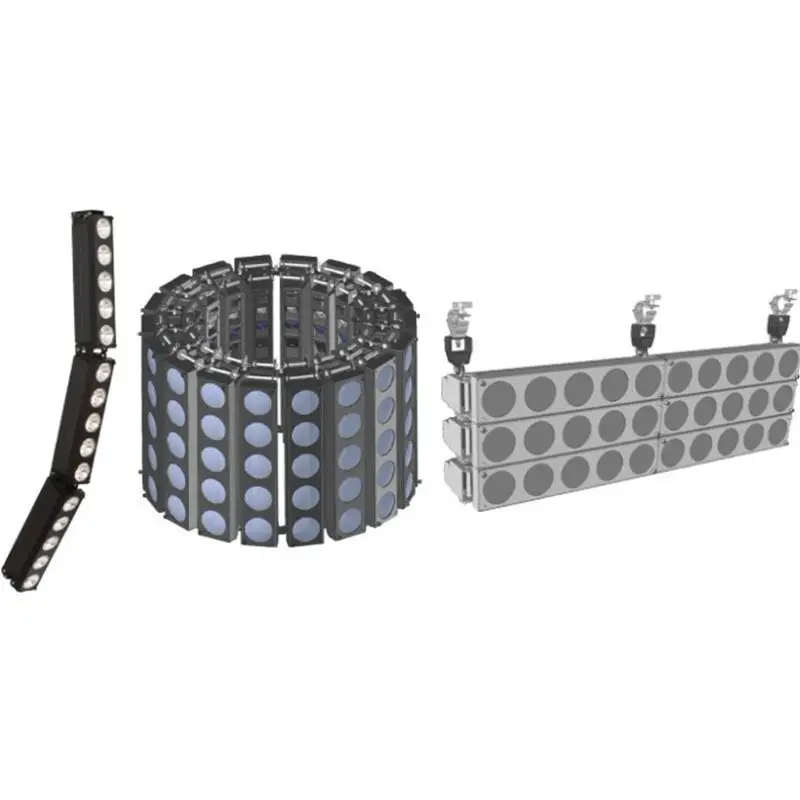

Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

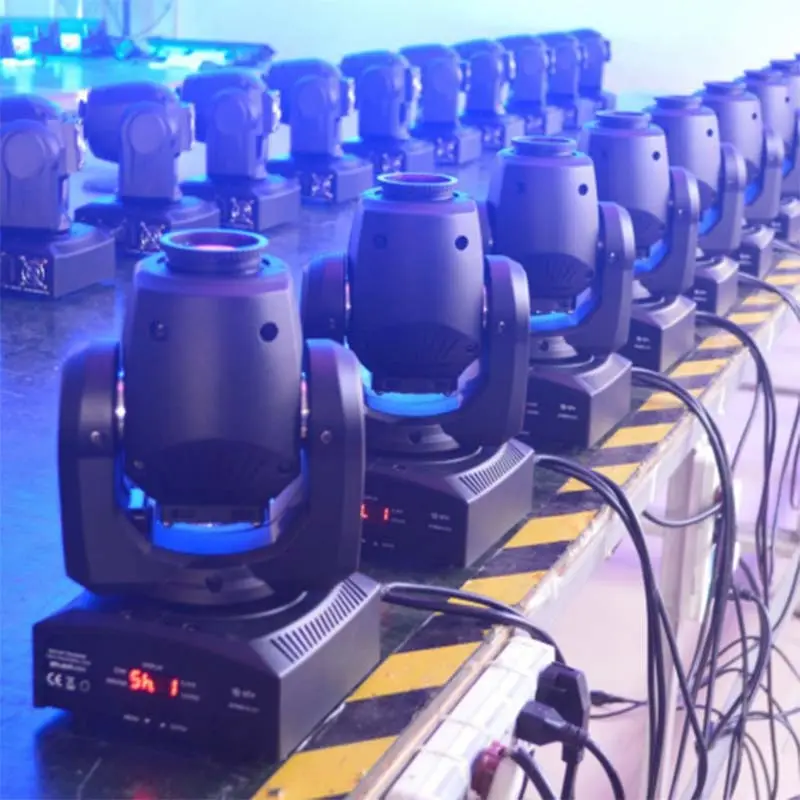

Test chart

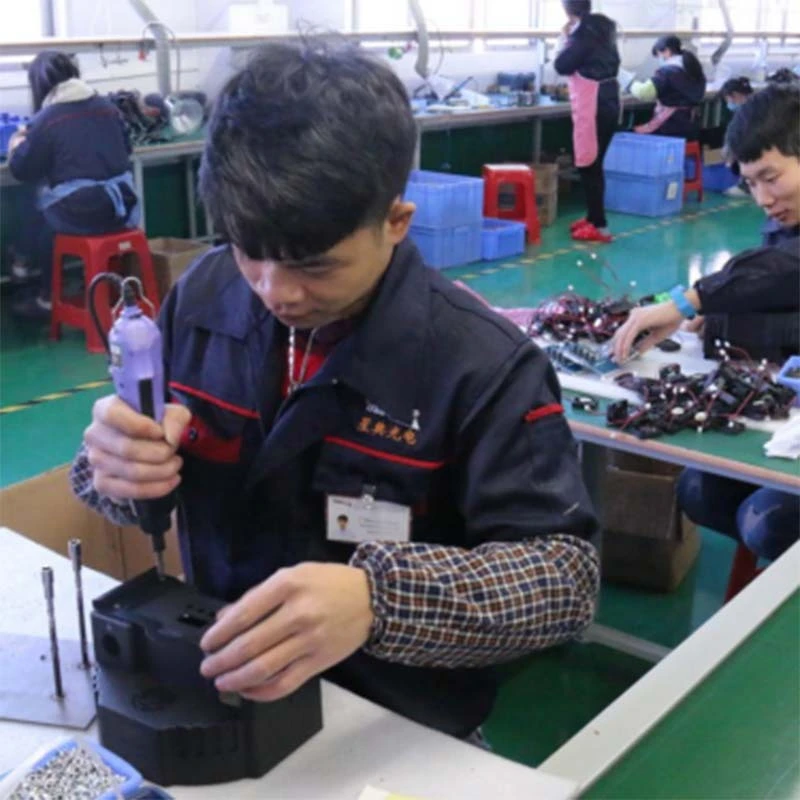

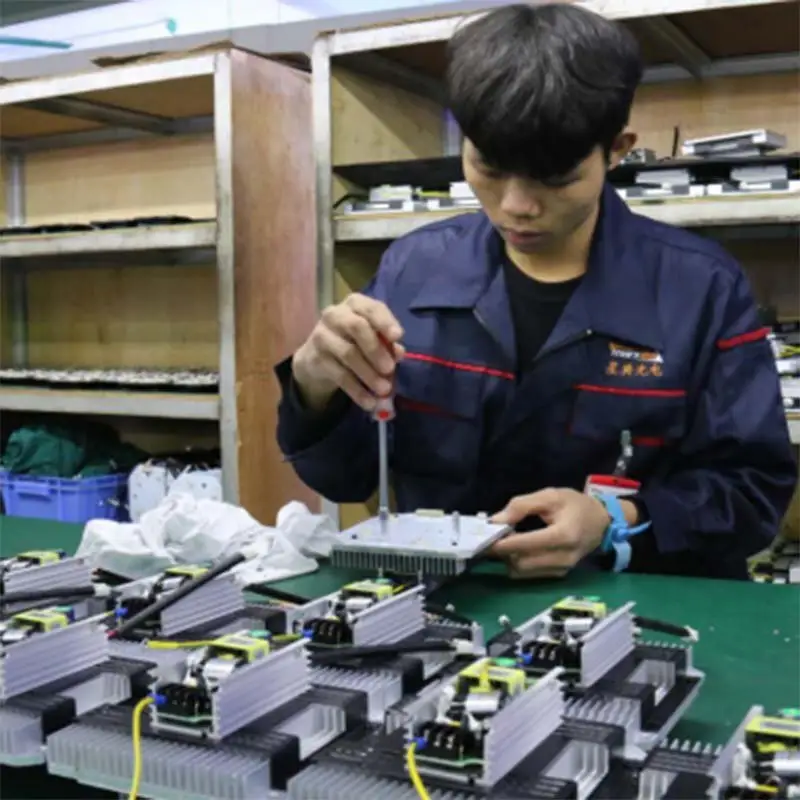

Production line
Packing
